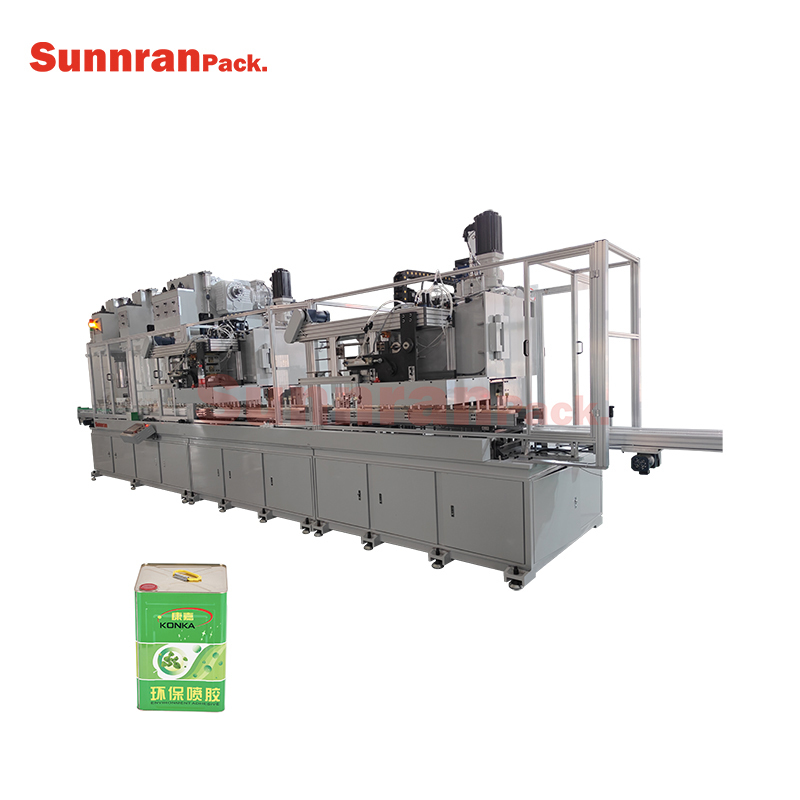

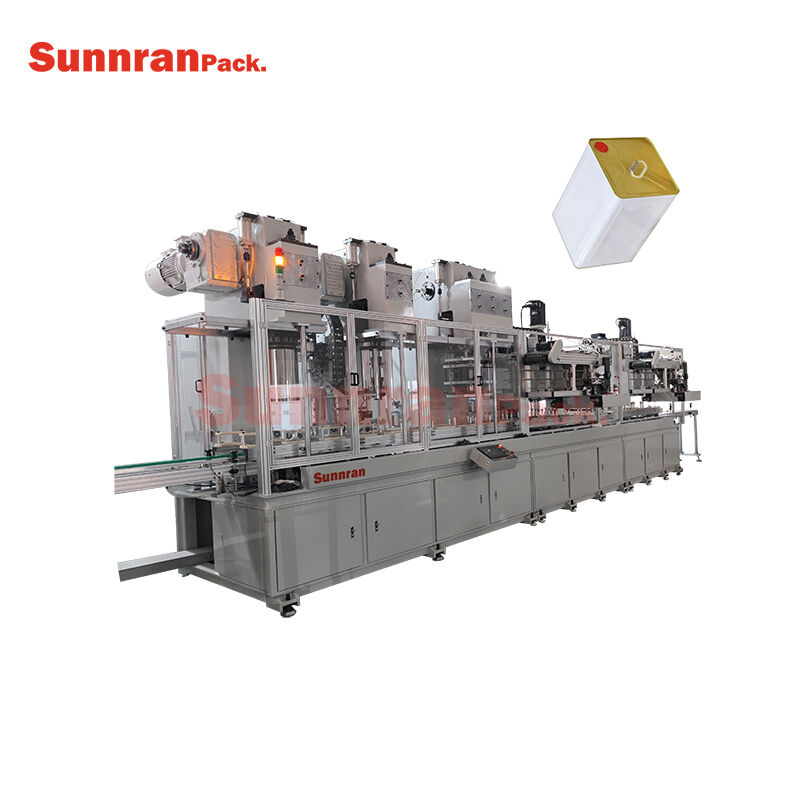

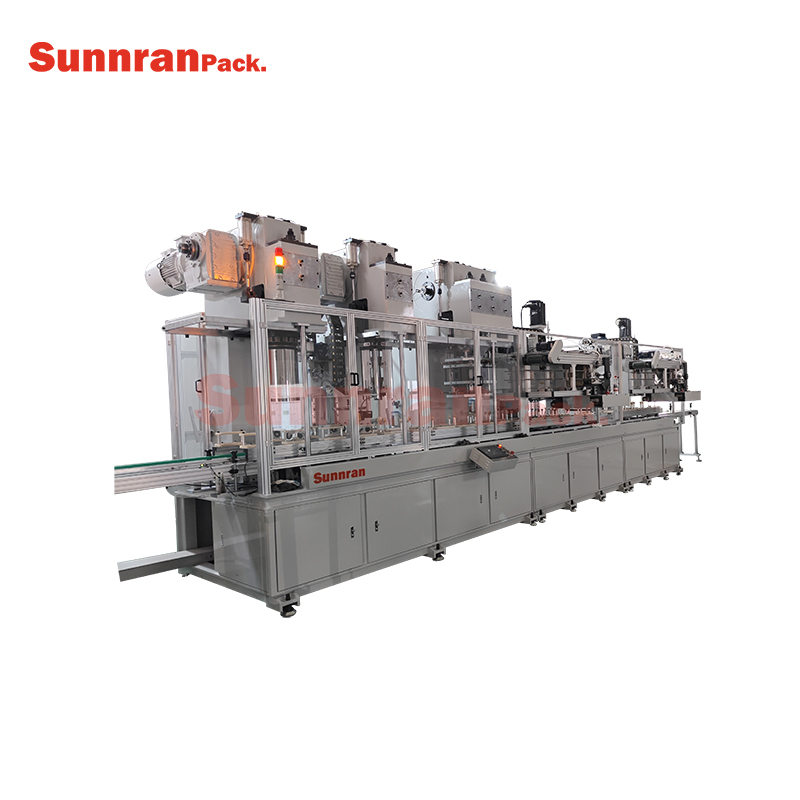

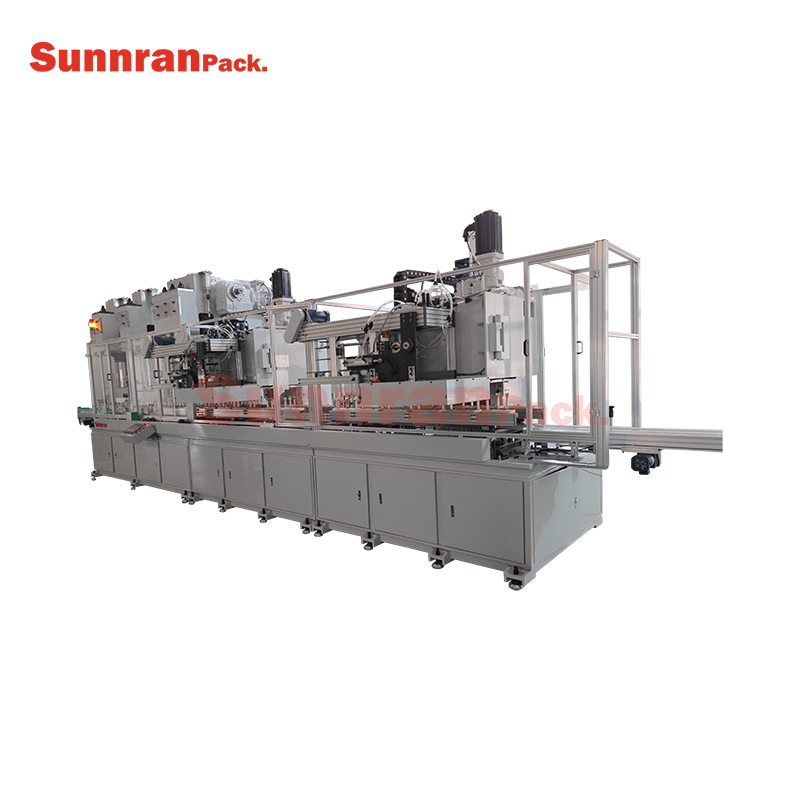

Fully Automatic Production Line For Conical Square Can with Capacity of 30 Cans/min

Minimum Order Quantity :	1set	Price :	Negotiable
Packaging Details :	Wooden Case	Delivery Time :	90working days

Place of Origin:	China	Brand Name:	Sunnranpack
Certification:	CE

Detail Information
Output:	30 CPM	Applicable Can Height:	200-420mm
Power:	APP. 72KW	Tinplate Thickness:	0.25-0.35mm
Dimension:	9100mmx2150mmx2850mm
Highlight:	fully automatic conical square can production line , aerosol can making machine 30 cans/min , conical square can manufacturing line with warranty

Product Description

Features:

The speed can reach 30cpm. This line adopts conical expanding first, and then square expanding forming process, making the tinplate stretch evenly as well as the flanging, with grip flanging process. It avoids the flanging becoming arc ensure the seaming quality. It uses purely mechanical cam transmission, cam conveying can, cam holding can, and makes the speed continuously adjustable. With protection device for can jam, it makes the production process run safely and smoothly.

Parameters:

Output	30 CPM
Applicable Can Height	200-420mm
Power of whole line	APP. 72KW
Applicable Range	18L,20L Square Cans
Applicable Tinplate Thickness	0.25-0.35mm
Voltage	Three-phase Four-line 380V(Can be configured according to different countries)
Applicable Tinpla Temper	T2.5-T3
Air Pressure	≥0.6Mpa
Weight	APP. 22T
Dimension(LxWxH)	9100mmx2150mmx2850mm
