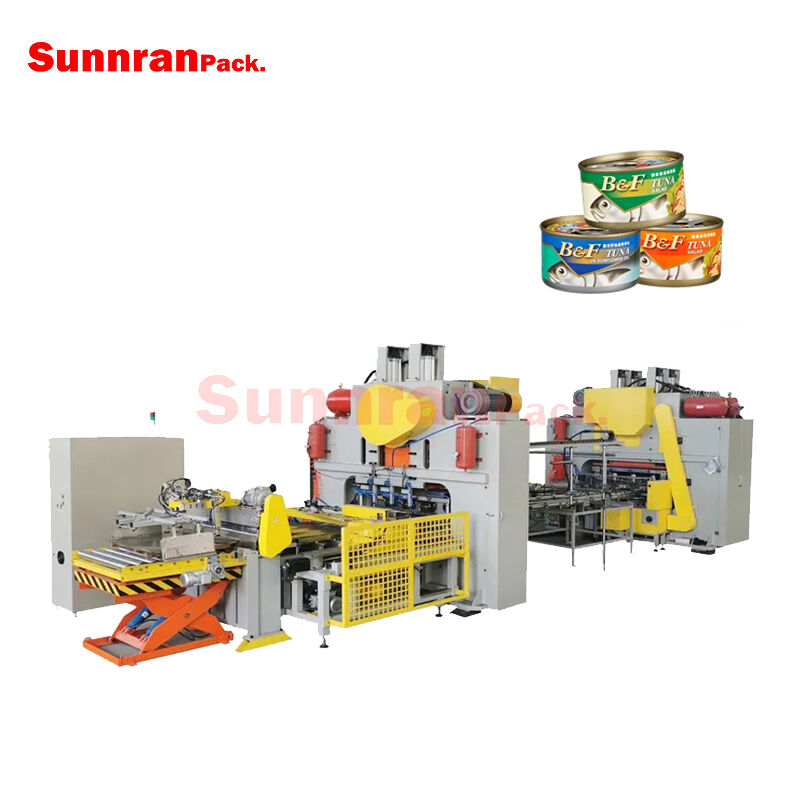

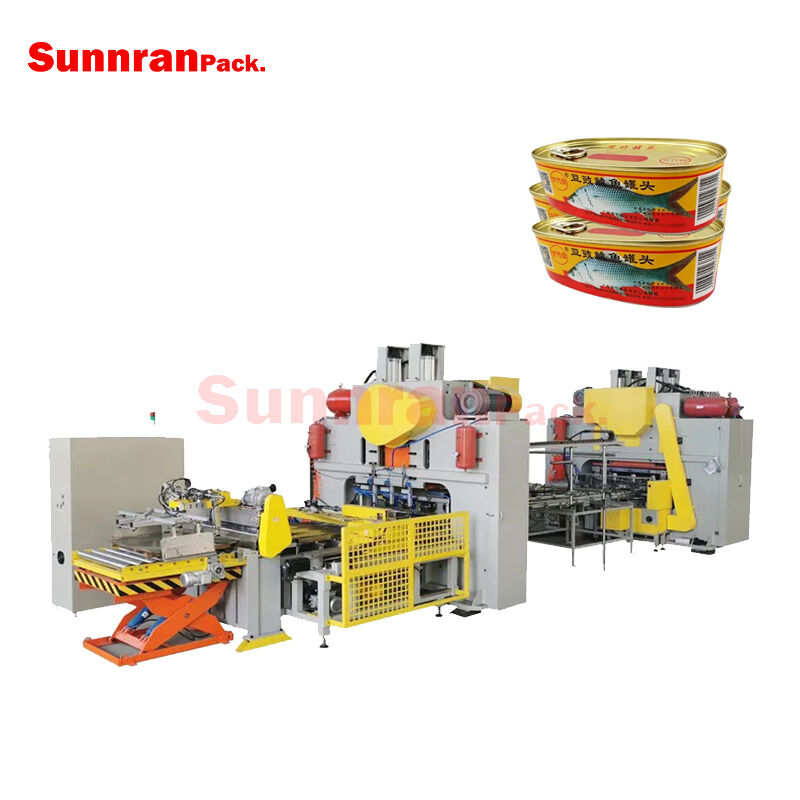

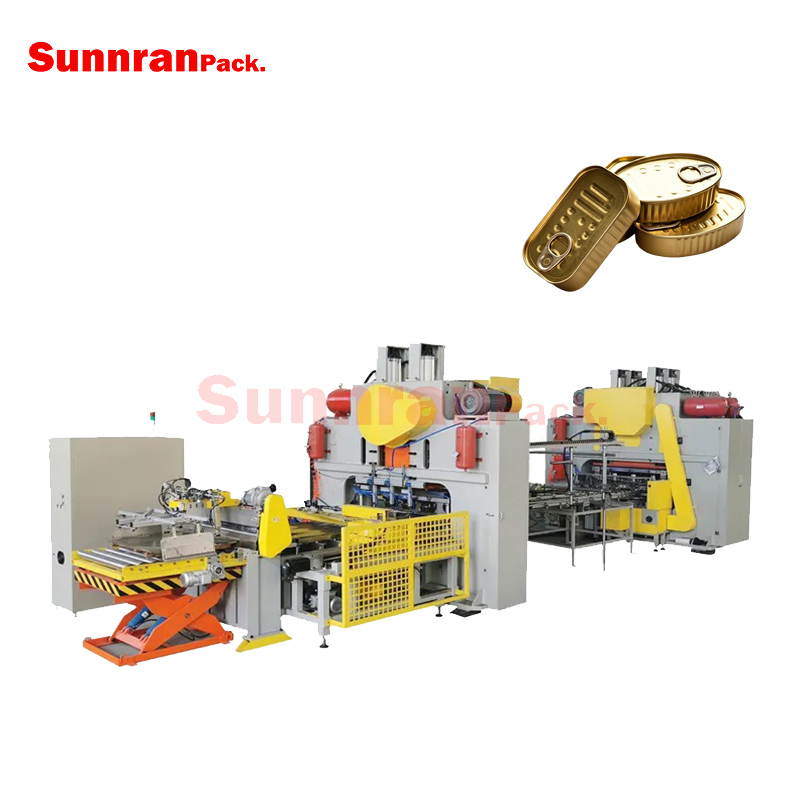

Automatic Two Piece Can Making Tuna Can Production Line

Minimum Order Quantity :	1set	Price :	Negotiable
Packaging Details :	Wooden case	Delivery Time :	150working days
Payment Terms :	T/T, L/C

Place of Origin:	China	Brand Name:	Sunnranpack
Certification:	CE

Product Description

Product Description

Sunnran company is supplying the 2pc can making line with strong press to assure the stability of the 2 pc can making line.

This line is using the auto hydraulic die adjusting system to reduce the labor work. It can effectively improve the production efficiency .

Specification:

CNC Sheet Feeding System

Hydraulic lifting platform with loading capacity over 2.5 tons.
Automatic feeding driven by servo motor, equipped with sensitive and stable double sheet detector.
Robot arm clamp with Panasonic detection device for automatic bad clamping alarm.
Functions include auto cover-out detection, auto fault detection and automatic waste discharge with collector.
Suitable for sheets ≤1050×1050mm, CNC axis stroke over 1100mm, for both scroll cut and square sheet materials.

Press

High-strength integrally steel welded column-type frame.
High-performance dry friction clutch, hydraulic overload protector and high-precision eight-face lengthened guide.
Electric die height adjustment with digital display and lifting balance cylinder.
Imported dual solenoid valve and electric forced grease lubrication system.
Controlled by international brand PLC for stable and reliable operation.

Parameter	Drawing Process	Redrawing Process	Trimming Process
Press Type	100 ton double action high precision portal press	100 ton double action high precision portal press	45 ton double action high precision portal press
Nominal Force	100T	100T	45T
Nominal Stroke	5mm	5mm	4mm
Slide Stroke	180mm	180mm	100mm
Max Mould Number	Depends on customer can size	Depends on customer can size	Depends on customer can size
SPM (Strokes Per Minute)	50 SPM	50 SPM	80 SPM
Max Sheet Format	1050×1050mm	1050×1050mm	1050×1050mm
Main Motor Power	15kW	15kW	5.5kW
Weight	18000kg	18000kg	3450kg
Dimension (L×W×H)	2250×2370×3500mm	2250×2370×3500mm	1390×1125×2275mm
