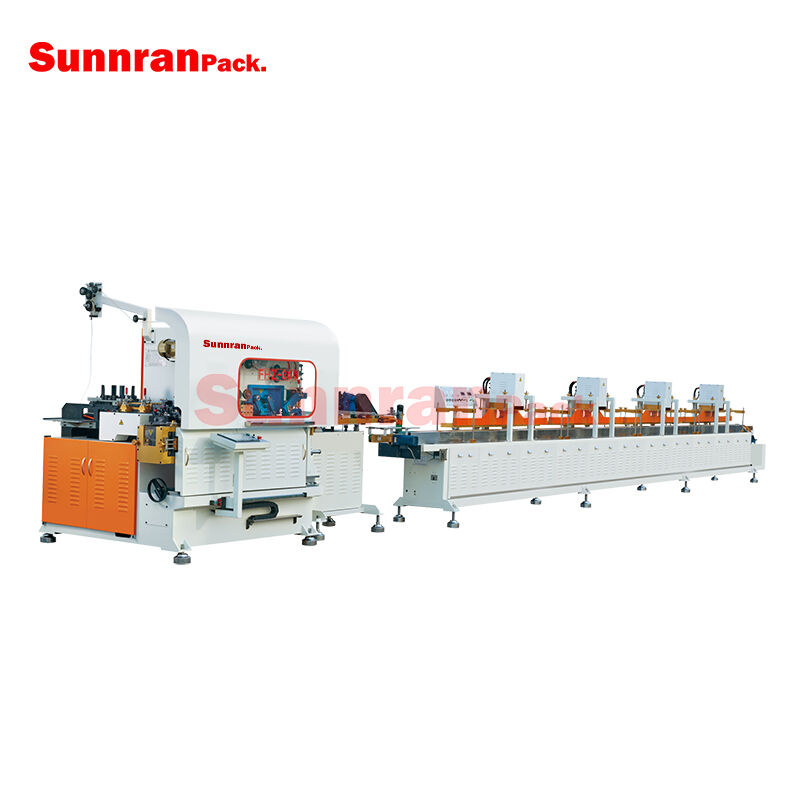

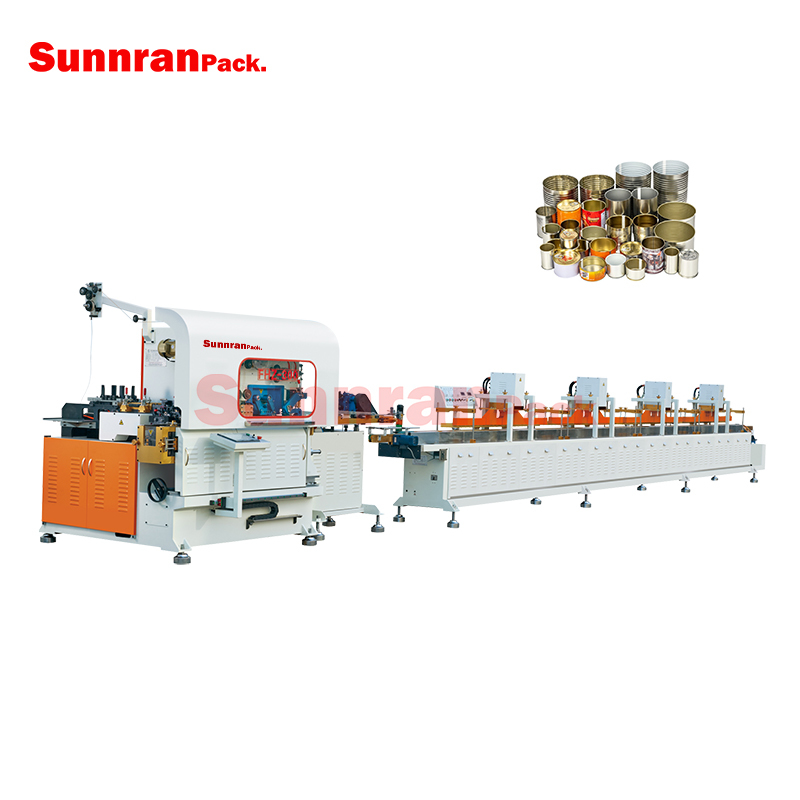

Fully Automatic Can Body Production Line designed for integration with automated packaging lines to streamline tin can production workflow Capacity 300 cans/min

Minimum Order Quantity :	1set	Price :	Negotiable
Packaging Details :	Wooden Case	Delivery Time :	90working days
Payment Terms :	T/T,L/C

Place of Origin:	China	Brand Name:	Sunnranpack
Certification:	CE

Detail Information
Production Capacity:	200-300 Cans/min	Can Diameter:	Ф52mm-Ф153mm
Sheet Thickness:	0.16-0.30 Mm	Welding Speed:	16-38m/min
Power Supply:	60kVA, 3P, AC 380V/50Hz
Highlight:	automatic can body production line , tin can making machine 300 cans/min , can line for automated packaging integration

Product Description

Fully Automatic Energy-saving Drying Machine

Features:

It features a dual-crank suction feeder paired with a can pushing fork to achieve steadier material feeding, while magnetic separation technology is applied to prevent scratches on tinplates.
The rolling unit comes with a fixed-quantity automatic periodic lubrication system, which allows lubrication without halting the machine. This reduces maintenance workload and extends the equipment’s service life.
Fitted with imported needle roller bearings, the rolling machine adopts a foolproof modular design.
Key components are manufactured with innovative processes, offering outstanding durability and effectively preventing tin sticking.
Critical parts are made of cermet material, which boasts insulation and wear resistance for a longer lifespan. Combined with advanced variable-frequency inverter welding technology, it produces flawless weld seams.
A copper wire cooling assembly is installed to maintain consistent elongation. This ensures uniform spacing between cans and reliable welding quality at both the start and end of each weld seam.
Servo and frequency conversion control systems are deployed to guarantee high-precision regulation.
It supports double-sheet detection with automatic rejection, enabling uninterrupted production runs.
The bilingual Chinese-English HMI saves parameters for all individual modules for straightforward operation. It also includes an automatic fault diagnosis function and a reserved remote communication interface, supporting convenient direct after-sales service.
Protective guards and safety electrical door interlocks are supplied as standard configurations to safeguard operational safety.

Parameters:

Auto Can Body Welder
Production Capacity	200-300 cans/min
Can Diameter	Ф52mm-Ф99mm, Ф65mm-Ф105mm
Can Height	50mm-120mm, 90mm-190mm
Welding Speed	16-38m/min
Overlap	0.3-0.5mm
Welding Frequency	200-600HZ
Copper Wire	Ф1.27mm-Ф1.38mm
Materials	Tin amount:5#(1.12g/m2)-100#(22.4g/m2) T2.5(HR30T55 +3)-DR8(HR30T73,>0.20mm)
Sheet Thickness	0.16-0.30 mm
Power Supply	60kVA,3P,AC 380V/50Hz
Compressed Air	>800L/min, >0.5MPa
Cooling Water	>40L/min, >0.4MPa, <18°C
Dimension	2100(L)x1800(W)x2100(H)mm
Weight	4000kg
Welding Seam Coating Machine
Can Diameter	Ф52mm-Ф105mm
Coating Width	10-15mm
Conveying Speed	12-57m/min
Power Supply	1kVA,3P,AC380V/50Hz
Dimension	1350(L)x800(W)x1800(H)mm
Weight	400kg
Can Body High Frequency Induction Curing System
Production Capacity	150-400cans/min
Can Diameter	Ф52mm-Ф99mm, Ф99mm-Ф153mm
Curing Speed	16-42m/min
Heater Quantity	2mx4 heaters
Power Supply	18kVA,3P,AC 380V/50Hz
Max Power Consumption	9kW/h
Dimension	10700(L)x1000(W)x1700(H)mm
Weight	2600kg
