Fully Automatic Energy-saving Drying Machine offering modular design allowing customization and upgrades to meet evolving packaging industry requirements

Minimum Order Quantity :	1set	Price :	Negotiable
Packaging Details :	Wooden Case	Delivery Time :	90working days
Payment Terms :	T/T,L/C

Place of Origin:	China	Brand Name:	Sunnranpack
Certification:	CE

Detail Information
Installed Power:	2kW	Can Height:	45mm-600mm
Transfer Speed:	10-20m/min / 20-60m/min	Cooling Water:	>0.3MPa, 23-28℃, 40L/min
Coating Width:	6-14mm
Highlight:	automatic drying machine modular design , energy-saving drying machine customization , drying machine packaging industry upgrades

Product Description

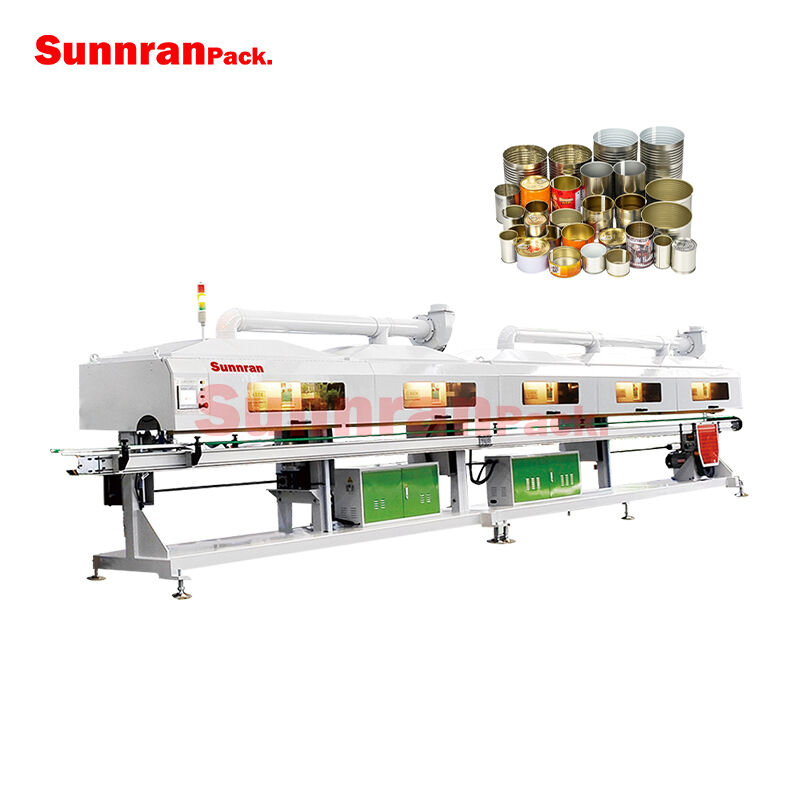

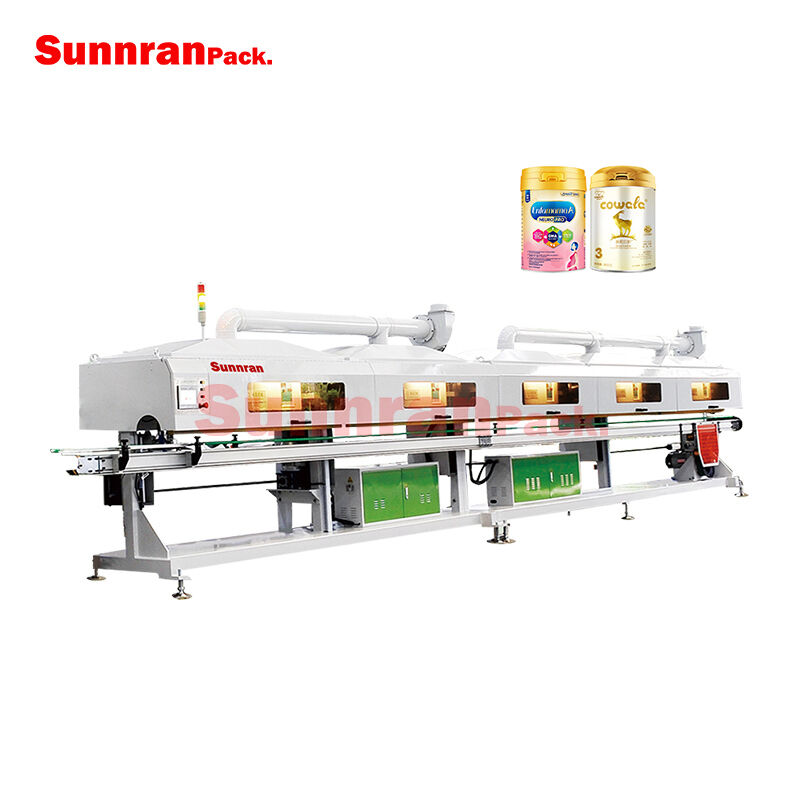

Fully Automatic Energy-saving Drying Machine

Features:

This equipment is developed based on cutting-edge design ideas, integrating can gathering, kneading, rounding and welding procedures into one continuous production workflow.
Its electric control unit is built around programmable PLCs from Mitsubishi or Omron, paired with servo drives and Mitsubishi motion control modules to form a smart digital control solution.
Key electric and pneumatic parts are sourced from globally recognized manufacturers, including Schneider (France), Mitsubishi (Japan), Omron (Japan), Delta (Taiwan, China), SMC (Japan) and AirTAC (Taiwan, China). This configuration delivers reliable and consistent machine performance.
A bilingual Chinese-English touchscreen HMI supports parameter adjustment, simplifies fault diagnosis and enables fast troubleshooting.
Can mould replacement is simple and time-efficient. Servo motors are deployed for can pushing and feeding movements to streamline operation.
It features an original mechanical layout. Core components are manufactured from premium raw materials such as imported steel, highly wear-resistant ceramic and cemented carbide, extending the equipment’s service life.
The rounding station adopts an innovative design with excellent iron kneading capability. Its well-engineered structure prevents scratches on can bodies and maintains a flawless finished appearance. The lifting platform of the rounding unit uses a scissor-type mechanism, offering greater stability and dependability than conventional hydraulic lifting systems.
Equipped with a proprietary intelligent speed regulation system and high-precision clutch, the machine can accurately manage the spacing between cans, with an adjustable range from 1 mm to 3 mm. This function helps reduce copper wire consumption and cuts production costs.
The cooling system is fitted with an advanced water flow monitoring unit. When the flow rate falls below the preset standard, the machine triggers an automatic alarm and halts operation. This safeguards the cooling assembly and prolongs the service life of the welding wheels.
Optional upgrades include a mercury-free welding setup and remote control function.

Parameters:

Burner heating speed	4m-7m/min
Burner power	1-2KW
Suitable small can diameter	Ф45mm-Ф176mm
Suitable big can diameter	Ф176mm-Ф350mm
Can height	45mm-600mm
Cooling water	>0.3MPa,23-28℃,40L/min
Air consumption	≥50L/min >0.3Mpa
