Fully Automatic Can Body WeIder combining welding, coating and curing of 9-25L food cans and chemical cans with a production capacity of 70cans/min

Minimum Order Quantity :	1set	Price :	Negotiable
Packaging Details :	Wooden Case	Delivery Time :	90working days
Payment Terms :	T/T,L/C

Place of Origin:	China	Brand Name:	Sunnranpack
Certification:	CE

Detail Information
Brand:	Sunnranpack	Category:	Welder
Capacity:	50 Cans/min	Can Diameter:	Ф220mm-Ф286mm
Can Height:	280mm-500mm
Highlight:	Fully Automatic Can Body Welder , 9-25L food can welder , 70cans/min tin can machine

Product Description

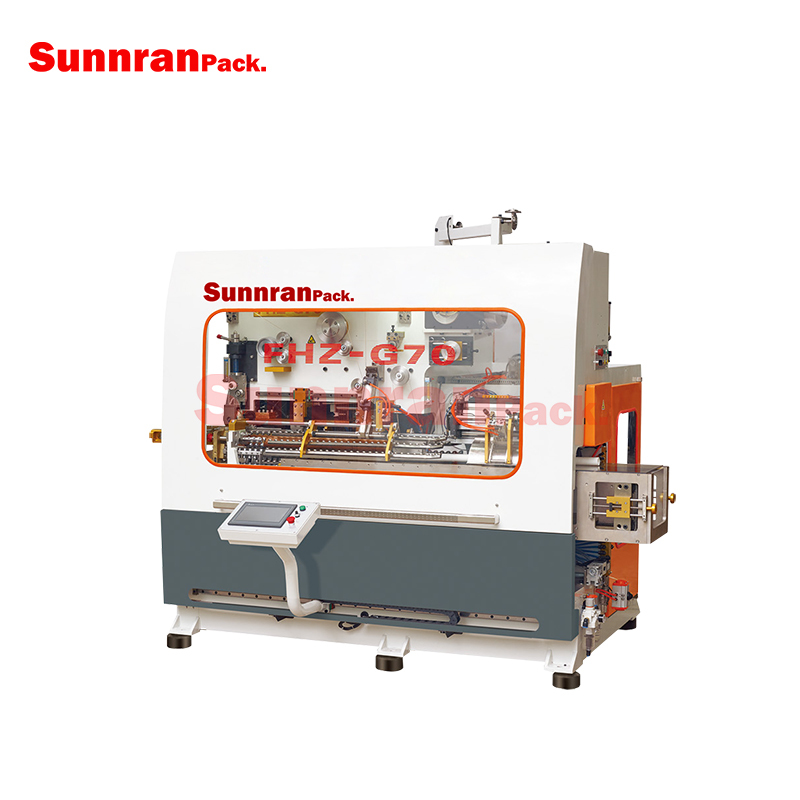

Fully Automatic Can Body WeIder

Features:

One key auto adjustment for can height, also servo auto adjustment for tinplate feeding paw width, feeding table, pushing can device and production speed, to solve the difficulty of frequent replacement on can height during production.
Adopt up sucking model to avoid double tinplates, auto rolling by servo to put tinplates right position, X model big cylinder hydraulic elevator to ensure tinplate feeding fast and stable, double feeding store system to ensurenon stop production by 10% more efficiency.
The rolling machine adopts rolling kneading form which applies to wider range of plates and makes the rolling process smoother. Besides, this form avoids scratch on the surface and solves shaping problem of thin plates. The upper and lower steel shaft equally use needle bearing which prolongs the life span. The design of greasing at one spot makes maintenance more convenient.
Adopt stable variable control system and speed servomotor on can feeding and pushing for welding; adopt servo motor welding machine in parallel with two SMC rod-less cylinder tensioning for copper wire system to ensure that can distance is between 2-3mm, it can guarantee the welding quality at front end of the welding seam and save the consumption of cooper wire.
Adopt big diameter Φ140 Zirconia Ceramics Roller, double oil turbine gearbox, IKO taper rller bearing, to ensure the front stable welding line, also save copper wire during production
Pneumatic Lifting to open can feeding cage, easy to operate during production.
With new variable frequency inverted welding technology to make a perfect welding seam.
Adopt four-bar mechanism with large-bore cylinder to ensure stable lifting and accurate transition position of can catching.
With high frequency induction curing system, it saves more than 80% energy compared to traditional ones; Venting and exhausting system is adopted to comply with requirement for environment protection and optimize production environment.
System is stable and reliable thanks to the electronic components of international renowned brands such as Schneider, Mitsubishi, Omron, SMC, etc.
Man-machine interface is in English and every module parameter is stored to facilitate easy operation. There is also failure auto-diagnosis function which is reliable and easy to operate.
Rational structure with protection cover and safety electric door locker added to ensure safety and make it more appealing in appearance.

Parameters:

Auto Can Body Welder
Production Capacity	35-70 cans/min
Can Diameter	Ф220mm-Ф286mm
Can Height	280mm-500mm
Welding Speed	20-36m/min
Overlap	0.4, 0.6mm
Output Current/Frequency	20-75A/120-300HZ
Copper Wire	Ф1.38mm-Ф1.5mm
Materials	0.28-0.42mm/T2.5~DR7
Sheet Thickness	0.16-0.30 mm
Power Supply	100kVA, 3P, AC 380V/50Hz
Compressed Air	>800L/min, >0.5MPa
Cooling Water	>40L/min, >0.4MPa, 12-18°C
Nitrogen Protection for Inside & Outside	>2X(12-16)L/min, >0.25MPa
Dimension	2600(L)x3365(W)x2340(H)mm
Weight	4890kg
Welding Seam Coating Machine
Can Diameter	Ф52mm-Ф286mm
Coating Width	10-15mm
Conveying Speed	8-38m/min
Power Supply	1kVA, 3P, AC380V/50Hz
Dimension	2100(L)x800(W)x1800(H)mm
Weight	400kg
Can Body High Frequency Induction Curing System
Production Capacity	70 cans/min
Can Diameter	Ф260mm-Ф286mm
Curing Speed	20-38m/min
Heater Quantity	3mx5 heaters
Power Supply	18kVA, 3P, AC 380V/50Hz
Max Power Consumption	9kW/h
Dimension	18590(L)x1000(W)x1750(H)mm
Weight	3500kg
