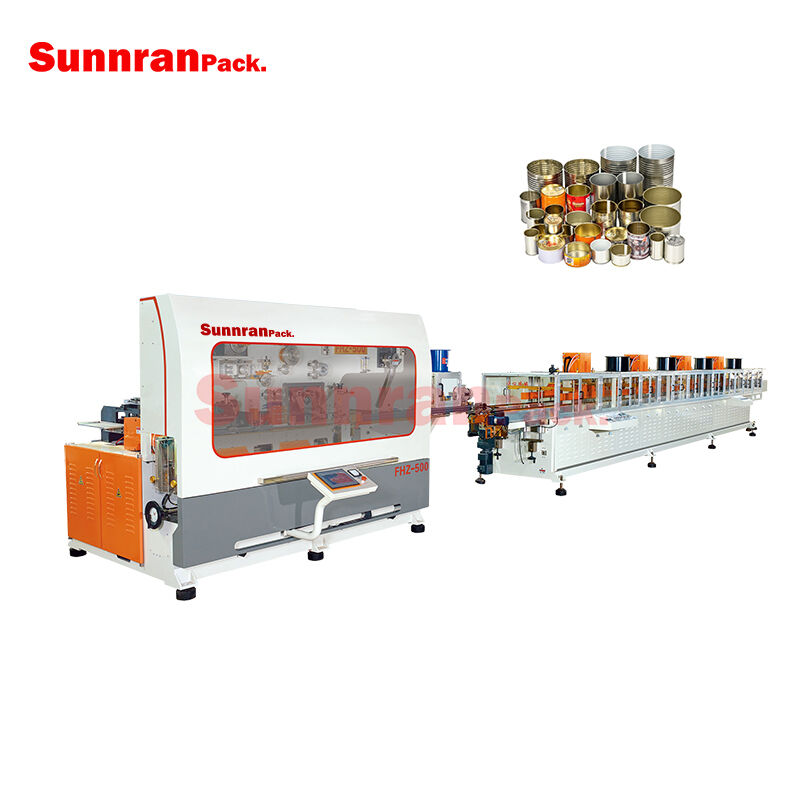

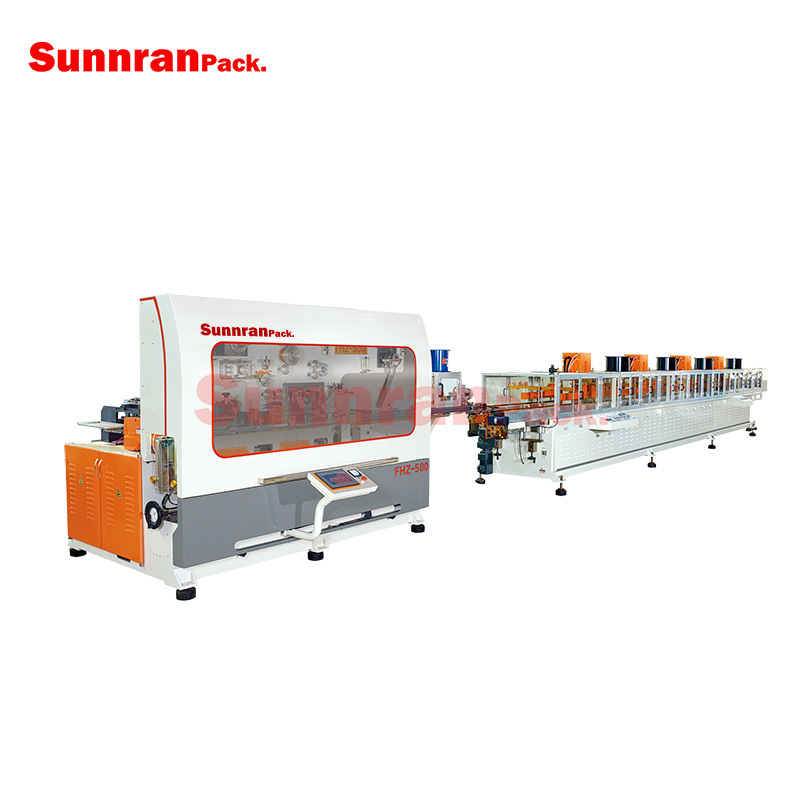

Fully Automatic Can Body Production Line for Food Can Beverage Can Aerosol Can General Can Capacity 500 cans/min

Minimum Order Quantity :	1set	Price :	Negotiable
Packaging Details :	Wooden Case	Delivery Time :	90working days
Payment Terms :	T/T,L/C

Place of Origin:	China	Brand Name:	Sunnranpack
Certification:	CE

Detail Information
Brand:	Sunnranpack	Category:	Production Line
Can Diameter:	Ф52mm-Ф99mm, Ф75mm-Ф153mm, Ф52mm-Ф65mm	Can Height:	50mm-190mm, 100mm-300mm, 100mm-320mm
Highlight:	fully automatic can production line , food can beverage can machine , 500 cans per minute capacity

Product Description

Fully Automatic Energy-saving Drying Machine

Features:

A vast variety of cans applied and easily adjusted.
One machine for multiple purposes with coating transfer part. Adopt four. _bar mechanism with large-bore cylinder to ensure stable lifting and accurate transition position of can catching.
Utilize double crank suction feeder and can pushing fork, one by one magnetic separation to eliminate plate scratch and ensure stable feeding.
Adopt lateral can conveyors to achieve less noise, easy adjustment and more sensitive in safety protection.
The rolling machine is equipped with auto lubricating system with adjustable feeding time and quantity so it's not necessary to stop the machine to do lubricating. Refuel work and maintenance works are reduced and production efficiency is increased accordingly.
With new Sine-ware variable frequency inverted welding technology to make a perfect welding seam.
Adopt servo control system and frequency control to ensure accurate control.
Double sheet detection with auto elimination for non-stop production. With high frequency induction curing system, it saves more than 80% energy compared to traditional one.
Venting and exhausting system is adopted to comply with requirement for environment protection and optimize production environment. Curing in U form helps saving space.
Man-machine interface is in English and every module parameter is stored to facilitate easy operation. There is also auto-diagnosis function to ensure safety. Remote control is available.

Parameters:

Auto Can Body Welder
Production Capacity	150-500 cans/min
Can Diameter	Ф52mm-Ф99mm, Ф75mm-Ф153mm, Ф52mm-Ф65mm
Can Height	50mm-190mm, 100mm-300mm, 100mm-320mm
Welding Speed	30-60m/min
Overlap	0.25-0.4mm
Welding Frequency	300-700HZ
Copper Wire	Ф1.24mm-Ф1.38mm
Materials	Tin amount:5#(1.12g/m2)-100#(22.4g/m2) T2.5(HR30T55 +3)-DR8(HR30T73,>0.20mm)
Sheet Thickness	0.14-0.30 mm, 0.16-0.30 mm
Power Supply	80kVA,3P,AC 380V/50Hz
Compressed Air	>800L/min, >0.5MPa
Cooling Water	>40L/min, >0.4MPa, 12-18°C
Dimension	2960(L)x2660(W)x2320(H)mm/3080(L)x2660(W)x2320(H)mm
Weight	4600kg/4800kg
Can Body High Frequency Induction Curing System
Production Capacity	300-600cans/min
Can Diameter	Ф52mm-Ф99mm, Ф73mm-Ф127mm
Curing Speed	30-62m/min
Heater Quantity	2mx8 heaters
Power Supply	36kVA,3P,AC 380V/50Hz
Max Power Consumption	17kW/h
Dimension	11880(L)x1450(W)x1650(H)mm
Weight	3400kg
