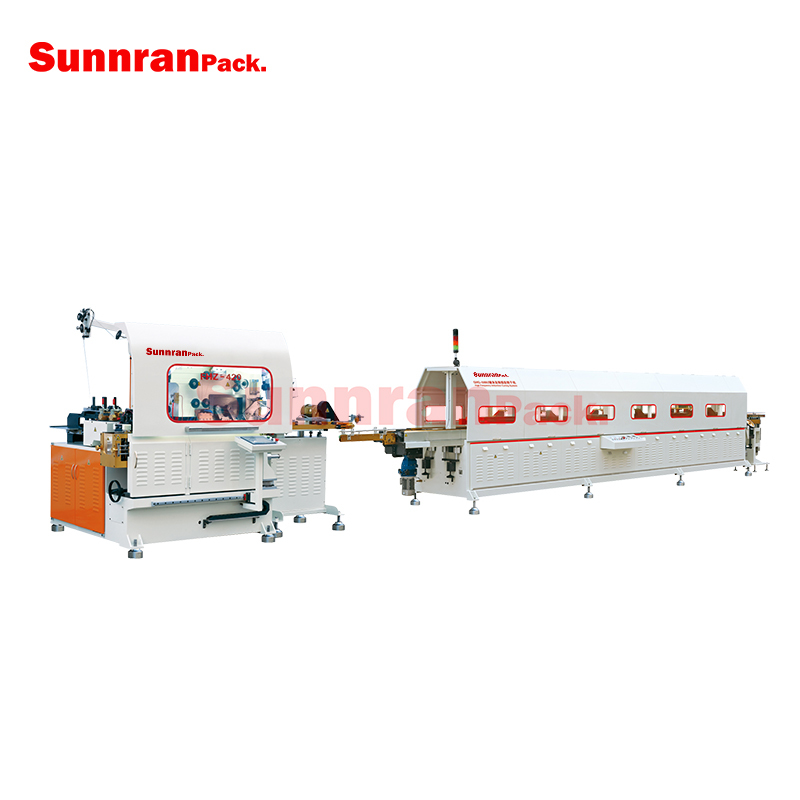

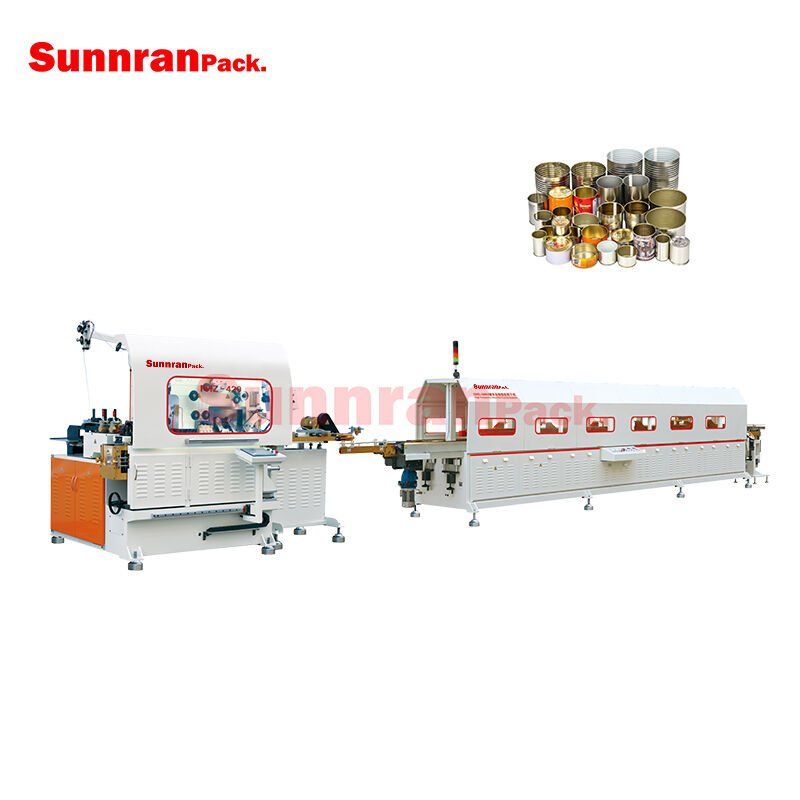

Fully Automatic Can Body Production Line for Food Can Beverage Can General Can Capacity 420 cans/min

Minimum Order Quantity :	1set	Price :	Negotiable
Packaging Details :	Wooden Case	Delivery Time :	90working days
Payment Terms :	T/T,L/C

Place of Origin:	China	Brand Name:	Sunnranpack
Certification:	CE

Detail Information
Brand:	Sunnranpack	Category:	Production Line
Capacity:	420 Cans/min	Can Diameter:	Ф52mm-Ф99mm
Can Height:	50mm-120mm, 90mm-190mm
Highlight:	fully automatic can production line , food can manufacturing machine , beverage can making equipment

Product Description

Fully Automatic Energy-saving Drying Machine

Features:

Apply to a vast variety of cans.One machine for multiple purposes.
Utilize double crank suction feeder and can pushing fork, one by one magnetic separation to eliminate plate scratch and ensure stable feeding.
The roling machine is equipped with automatic lubricating system so the rlling machine doesn't need to be stopped to do lubricating. Multiple rounds of kneading and forming to ensure stable rounding. Double sheet detection with auto elimination for non-stop production.
Adopt ZrO2 for key parts like Z-shaped guide way and sizing gauge bearing to make them toughen,which is non-cooling and wear-resisting and has a longer service life. With new variable frequency inverted welding technology to make a perfect welding seam.
Adopt four-bar mechanism with large-bore cylinder to ensure stable lifting and accurate transition position of can catching.
With high frequency induction curing system, it saves more than 80% energy compared to traditional ones;Venting and exhausting system is adopted to comply with requirement for environment protection and optimize production environment.
Servo control system and frequency control are adopted to ensure accurate control.
Man-machine interface is in English and every module parameter is stored to facilitate easy operation. There is also auto-diagnosis function to ensure safety.

Parameters:

Auto Can Body Welder
Production Capacity	200-420 cans/min
Can Diameter	Ф52mm-Ф99mm
Can Height	50mm-120mm, 90mm-190mm
Welding Speed	30-50m/min
Overlap	0.3-0.5mm
Welding Frequency	300-700HZ
Copper Wire	Ф1.27mm-Ф1.38mm
Materials	Tin amount:5#(1.12g/m2)-100#(22.4g/m2) T2.5(HR30T55 +3)-DR8(HR30T73,>0.20mm)
Sheet Thickness	0.16-0.30 mm
Power Supply	80kVA,3P,AC 380V/50Hz
Compressed Air	>800L/min, >0.5MPa
Cooling Water	>40L/min, >0.4MPa, <18°C
Dimension	2100(L)x1800(W)x2100(H)mm
Weight	4300kg
Welding Seam Coating Machine
Can Diameter	Ф52mm-Ф105mm
Coating Width	10-15mm
Conveying Speed	12-57m/min
Power Supply	1kVA,3P,AC380V/50Hz
Dimension	1350(L)x800(W)x1800(H)mm
Weight	400kg
Can Body High Frequency Induction Curing System
Production Capacity	200-500cans/min
Can Diameter	Ф52mm-Ф99mm
Curing Speed	24-52m/min
Heater Quantity	2mx6 heaters
Power Supply	27kVA,3P,AC 380V/50Hz
Max Power Consumption	13kW/h
Dimension	10660(L)x1410(W)x1800(H)mm
Weight	3000kg
