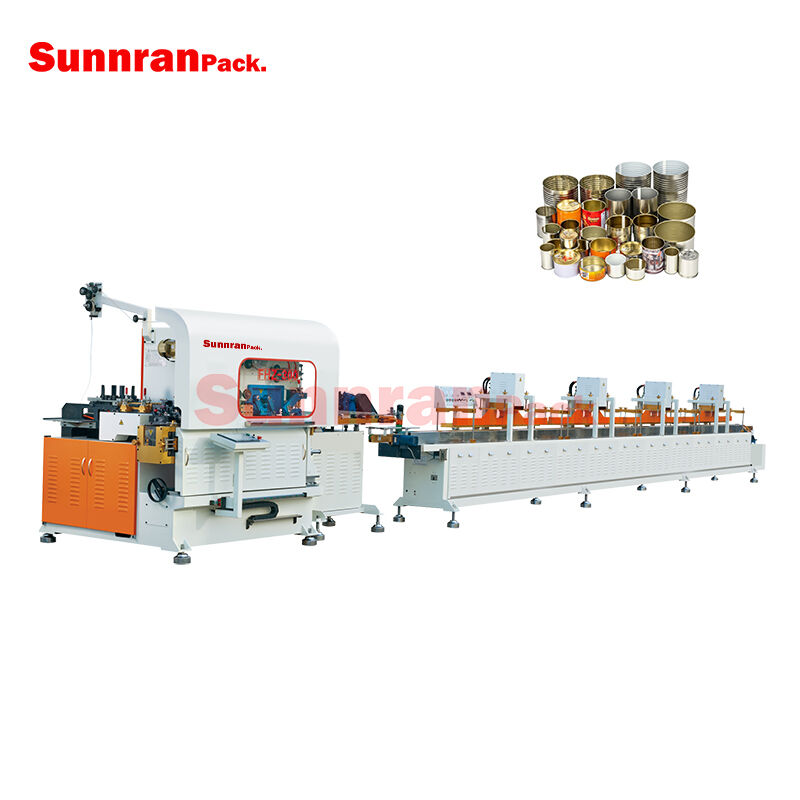

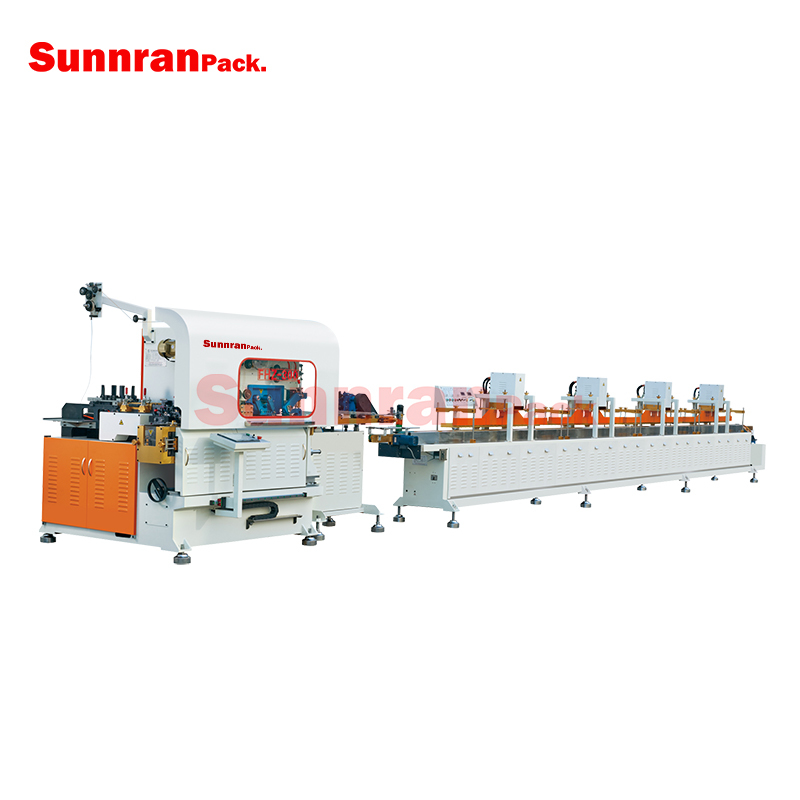

Fully Automatic Can Body Production Line for Food Can Beverage Can General Can Capacity 300 cans/min

Minimum Order Quantity :	1set	Price :	Negotiable
Packaging Details :	Wooden Case	Delivery Time :	90working days
Payment Terms :	T/T,L/C

Place of Origin:	China	Brand Name:	Sunnranpack
Certification:	CE

Detail Information
Installed Power:	2kW	Input Power:	AC 220V/50HZ
Suitable Small Can Diameter:	Ф45mm-Ф176mm	Cooling Water:	>0.3MPa,23-28℃,40L/min
Powder Material:	Polyester Epoxies	Suitable Big Can Diameter:	Ф176mm-Ф350mm
Total Weight:	500 Kg	Transfer Speed:	10-20m/min / 20-60m/min
Air Consumption:	≥50L/min >0.3Mpa	Coating Width:	6-14mm
Burner Heating Speed:	4m-7m/min	Air Consumption:	≥300L/min ＞0.5Mpa
Dimension:	9009002200mm	Burner Power:	1-2KW
Can Height:	45mm-600mm	Applicable Can Diameter:	φ52mm-φ350mm
Brand:	Sunnranpack	Category:	Production Line
Capacity:	300 Cans/min	Can Diameter:	Ф52mm-Ф99mm, Ф99mm-Ф153mm
Can Height:	50mm-120mm, 90mm-190mm
Highlight:	fully automatic can production line , food can beverage can machine , 300 cans per minute capacity

Product Description

Fully Automatic Energy-saving Drying Machine

Features:

Utilize double crank suction feeder and can pushing fork to have more stable feeding and adopt magnetic separation to avoid tin plate scratch.
The rlling machine is equipped with automatic regular lubricating system in a fixed quantity so the rolling machine doesn't need to be stopped to do lubricating. This will lead to less maintenance work and lengthen service life.
Equipped imported needle roller bearing, rolling machine is designed as foolproof module.
Adopt new technique and craft for key parts, durable and tin adhension is avoided accordingly.
Adopt cermet for key parts which is insulating and wear-resisting and has a longer service life. With new variable frequency inverted welding technology to make a perfect welding seam.
Equipped with copper wire cooling device to ensure stable elongation so that same gaps between cans and great welding quality of front & back ends of welding seam is achieved.
Adopt servo control system and frequency control to ensure accurate control.
Double-sheet detection with auto elimination for non-stop production.
Man-machine interface is in English & Chinese and every module parameter is stored to facilitate easy operation. There is also auto-diagnosis function and reserved remote communication port to achieve convenient point-to-point service.
Protection cover and safety electric door locker are added as standard to ensure safety.

Parameters:

Auto Can Body Welder
Production Capacity	200-300 cans/min
Can Diameter	Ф52mm-Ф99mm, Ф65mm-Ф105mm
Can Height	50mm-120mm, 90mm-190mm
Welding Speed	16-38m/min
Overlap	0.3-0.5mm
Welding Frequency	200-600HZ
Copper Wire	Ф1.27mm-Ф1.38mm
Materials	Tin amount:5#(1.12g/m2)-100#(22.4g/m2) T2.5(HR30T55 +3)-DR8(HR30T73,>0.20mm)
Sheet Thickness	0.16-0.30 mm
Power Supply	60kVA,3P,AC 380V/50Hz
Compressed Air	>800L/min, >0.5MPa
Cooling Water	>40L/min, >0.4MPa, <18°C
Dimension	2100(L)x1800(W)x2100(H)mm
Weight	4000kg
Welding Seam Coating Machine
Can Diameter	Ф52mm-Ф105mm
Coating Width	10-15mm
Conveying Speed	12-57m/min
Power Supply	1kVA,3P,AC380V/50Hz
Dimension	1350(L)x800(W)x1800(H)mm
Weight	400kg
Can Body High Frequency Induction Curing System
Production Capacity	150-400cans/min
Can Diameter	Ф52mm-Ф99mm, Ф99mm-Ф153mm
Curing Speed	16-42m/min
Heater Quantity	2mx4 heaters
Power Supply	18kVA,3P,AC 380V/50Hz
Max Power Consumption	9kW/h
Dimension	10700(L)x1000(W)x1700(H)mm
Weight	2600kg
