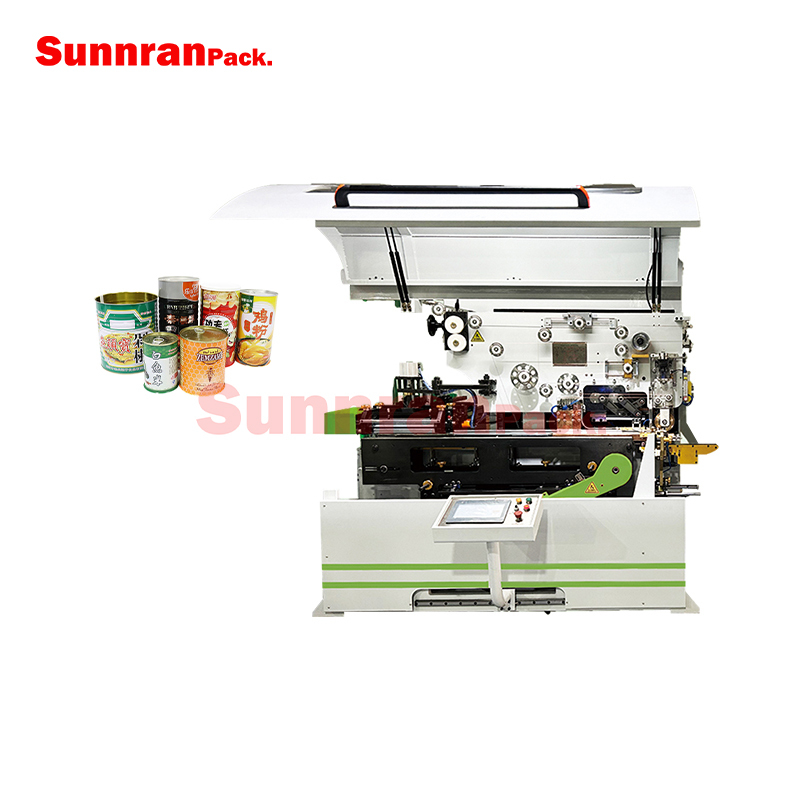

Fully Automatic Can Welding Machine for Food Cans
Fully Automatic Can Welding Machine for Food Cans
Contact Now

Fully Automatic Can Welding Machine for Food Cans

Minimum Order Quantity : 1set Price : Negotiable
Packaging Details : Wooden case Delivery Time : 6months
Payment Terms : T/T,L/C
Place of Origin: China Brand Name: Sunnranpack
Certification: CE

Detail Information
Welding Frequency: 100-280Hz Weld Seam Overlap: 0.3mm-0.8mm
Can Body Diameter: φ65(φ52)mm-φ176mm Copper Wire Diameter: Φ1.28mm-Φ1.38mm
Production Capacity: 150 Cans/min Installed Power: 20KW
Dimensions(LWH): 2000mm*1600mm*1800mm Power Supply: Three-phase/AC380V50Hz
Can Height: 70mm-260mm.(320mm) Adapt To Tinplate Thickness: 0.16mm-0.3mm
Cooling Water: >0.4MPa,12-20C,40L/min Device Weight: ~2800KG
Welding Speed: 12m-20m/min Air Consumption: 2300L/min >0.5Mpa
Highlight:

fully automatic food can welder

,

tin can welding machine

,

automatic can sealing machine

Product Description

Technical parameters:

Item Specification Item Specification
Welding frequency 100-280Hz Weld seam overlap 0.3mm-0.8mm
Welding speed 12m-20m/min Power supply Three-phase/AC380V50Hz
Production capacity 150 cans/min Installed power 20KW
Can body diameter φ65(φ52)mm-φ176mm Cooling water >0.4MPa,12-20C,40L/min
Can height 70mm-260mm.(320mm) Air consumption 2300L/min >0.5Mpa
Adapt to tinplate thickness 0.16mm-0.3mm Device Weight ~2800KG
Copper wire diameter Φ1.28mm-Φ1.38mm Dimensions(LWH) 2000mm*1600mm*1800mm
