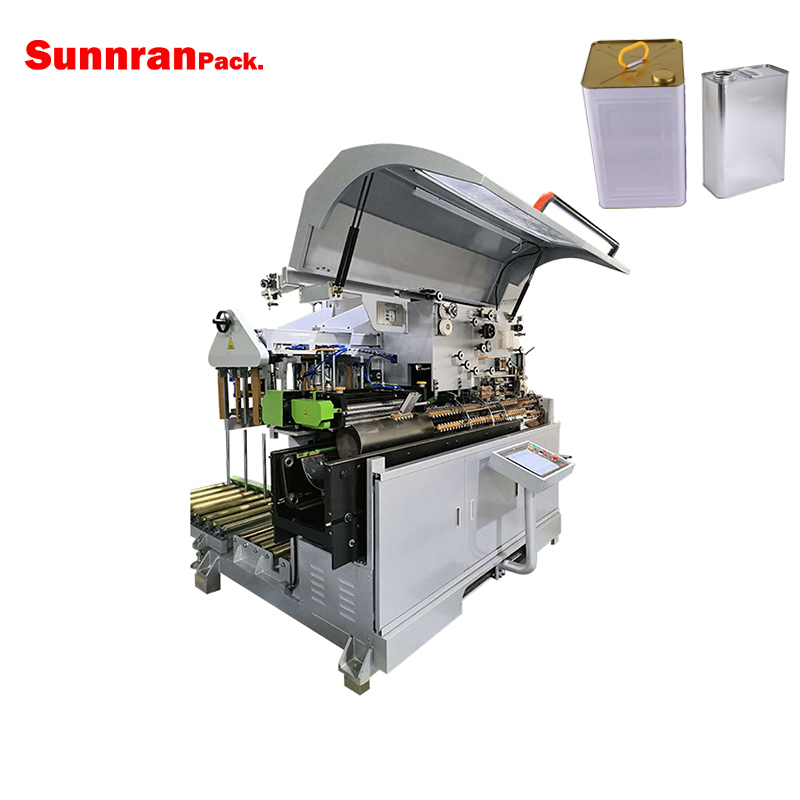

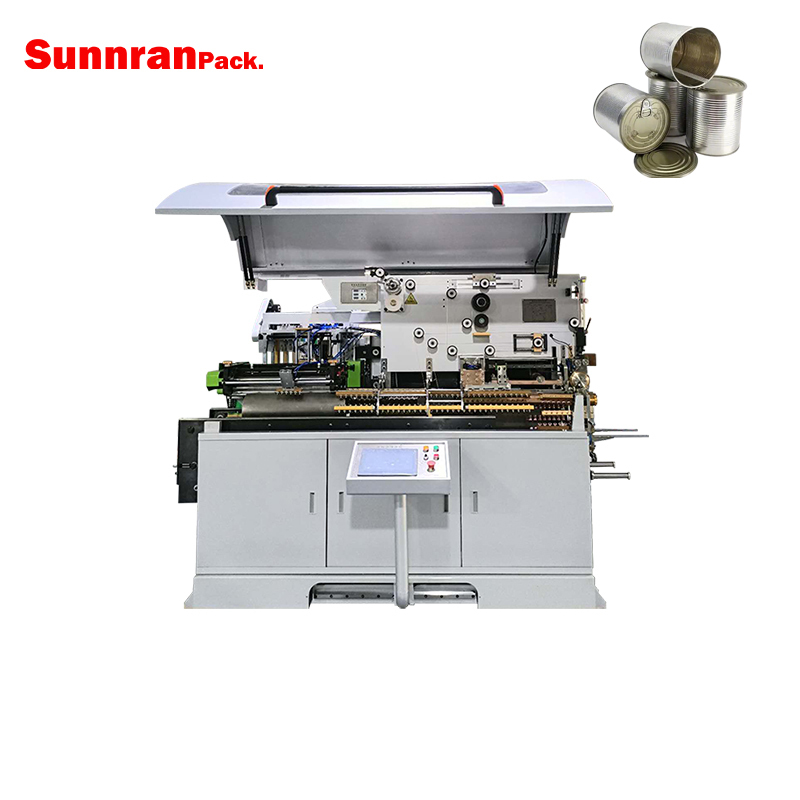

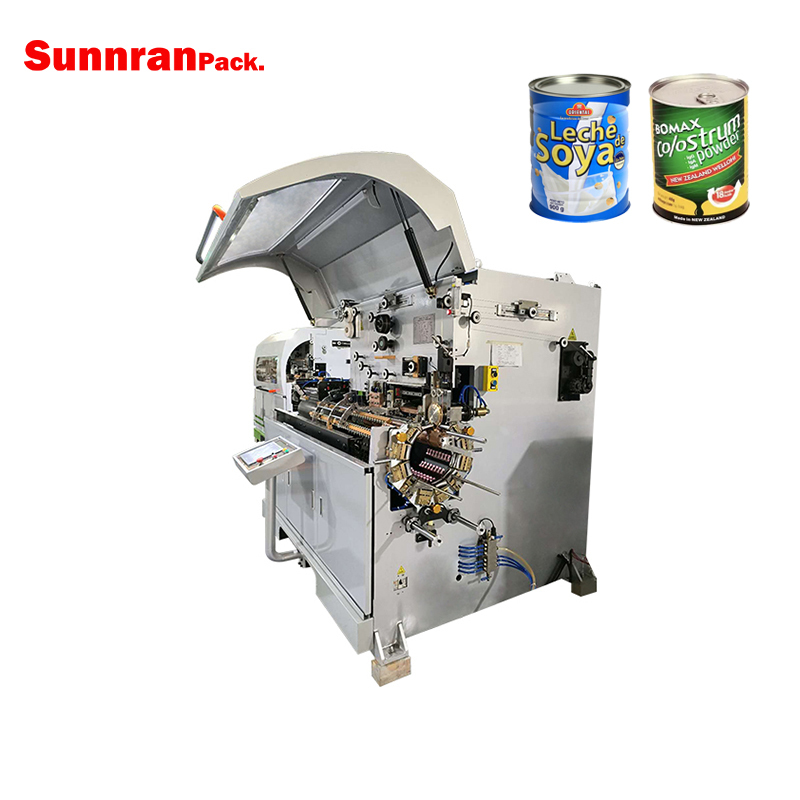

Automatic Welding Machine Chemical Can Welder for Food Can Milk Powder Can 35CPM

Minimum Order Quantity : 1set Price : Negotiable
Packaging Details : Wooden case Delivery Time : 90working days
Payment Terms : T/T, L/C
Place of Origin: China Brand Name: Sunnranpack
Certification: CE

Detail Information

Automatic: Yes Certification: CE
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation

Product Description

Features:

  • This general can body welder, manufactured by Chengxin Machinery, is a high-performance and multi-purpose automatic machine dedicated to seam welding of cylindrical metal cans.
  • As core equipment in the can-making production line, it ensures stable and efficient operation for automated can body manufacturing.
  • It integrates advanced precision machinery, CNC automatic control and high-efficiency welding technologies to achieve superior welding quality.
  • The machine realizes the smooth and continuous linkage of automatic rounding and welding processes, greatly improving production efficiency.
  • Guided by the philosophy of "Quality First, Service First", it is widely used in food, beverage, chemical and other metal can packaging industries.

Parameters:

Parameter Item Specification Parameter Item Specification
Welding Frequency 80 ~ 400 Hz Adaptable Tinplate Thickness 0.18 mm ~ 0.45 mm
Welding Speed 10 ~ 24 m/min Copper Wire Diameter Φ1.38 mm ~ Φ1.8 mm
Production Capacity 20 ~ 50 cans/min (adjustable by model) Weld Seam Width 0.3 mm ~ 1.0 mm
Can Body Diameter Φ220 mm ~ Φ290 mm Welding Power 45 kW ~ 63 kW
Can Height 70 mm ~ 500 mm Device Weight Approx. 2800 ~ 3500 kg
    Overall Dimensions (L×W×H) 1600×1500×2000 mm ~ 2100×1500×2000 mm
