Product Description

Key Design & Functional Features

1. Mechanical & Transmission

   • Heavy‑duty integrated steel frame for minimal vibration and long‑term stability.
   • Pure mechanical cam transmission with low mechanical impact, ensuring smooth operation and extended service life.
   • Servo‑driven retractable conveying and cam‑type can holding for precise positioning during forming and welding.
   • Independent servo system for can height adjustment via HMI, enabling quick size changeover (30–40 mins).

2. Control & Operation

   • Siemens motion control system with German SEW reducers for reliable power transmission.
   • Touchscreen HMI for real‑time monitoring, speed adjustment, fault diagnosis, and production data tracking.
   • Automatic jam detection with audible/visual alarms to prevent damage and reduce downtime.
   • Beading position locating function to avoid surface scratches during can stacking.

3. Production Process Integration

   • Automatic Feeding: Precision sheet feeding with servo alignment to ensure consistent blank positioning.
   • Body Forming: Multi‑station progressive forming for accurate rectangular body shaping.
   • Seam Welding: High‑frequency resistance welding with constant current control for uniform, leak‑proof seams.
   • Flanging & Curling: Roller‑type flanging and double‑curl forming for secure lid fitment.
   • Beading & Leak Testing: Integrated beading for structural rigidity and online air pressure leak detection to ensure 100% quality.

4. Electrical & Cooling

   • Independent electrical control cabinet with German Rittal cooling system for stable operation in high‑temperature environments.
   • Energy‑efficient design with low power consumption per unit production.


Applications

Advantages

• High production efficiency (40+ cpm) with consistent quality.
• Quick size changeover and easy maintenance reduce operational costs.
• Fully automated process minimizes labor and human error.
• Robust construction and premium components ensure long service life and low failure rates.
• Compliance with international safety and quality standards for global market access.

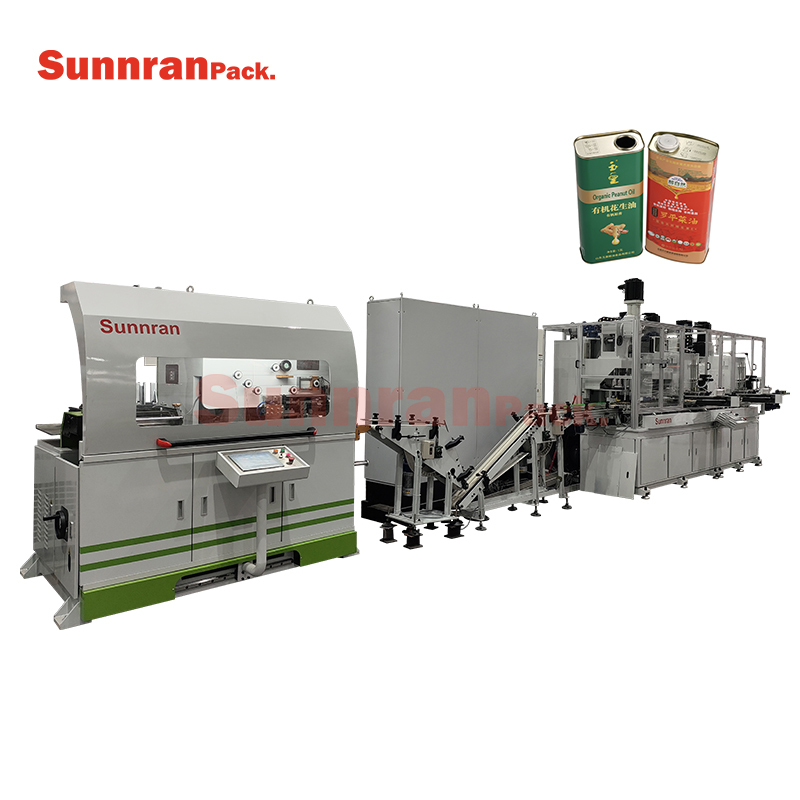

small rectangular tin can production line
