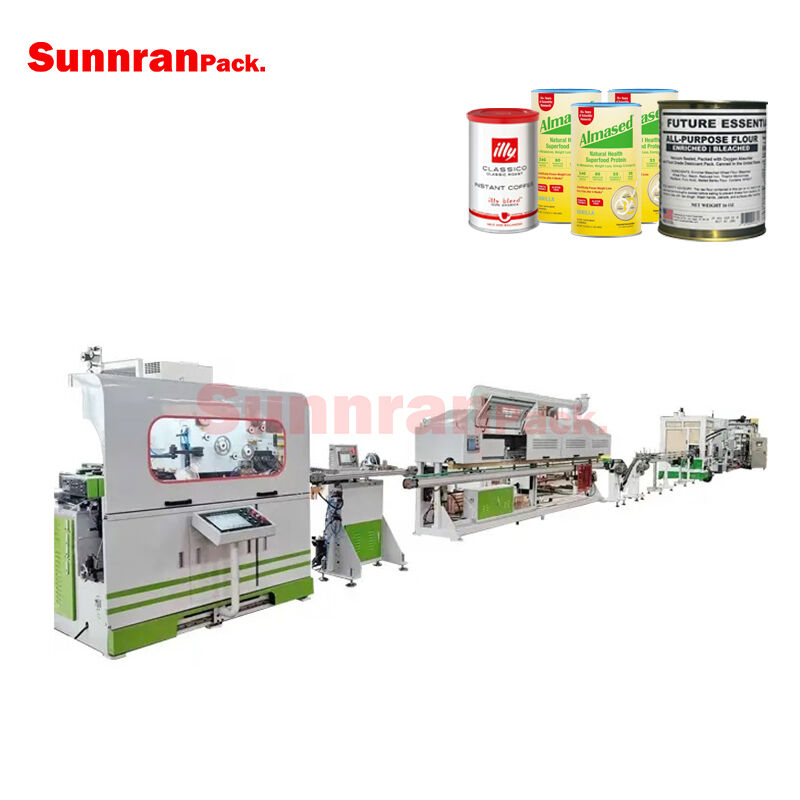

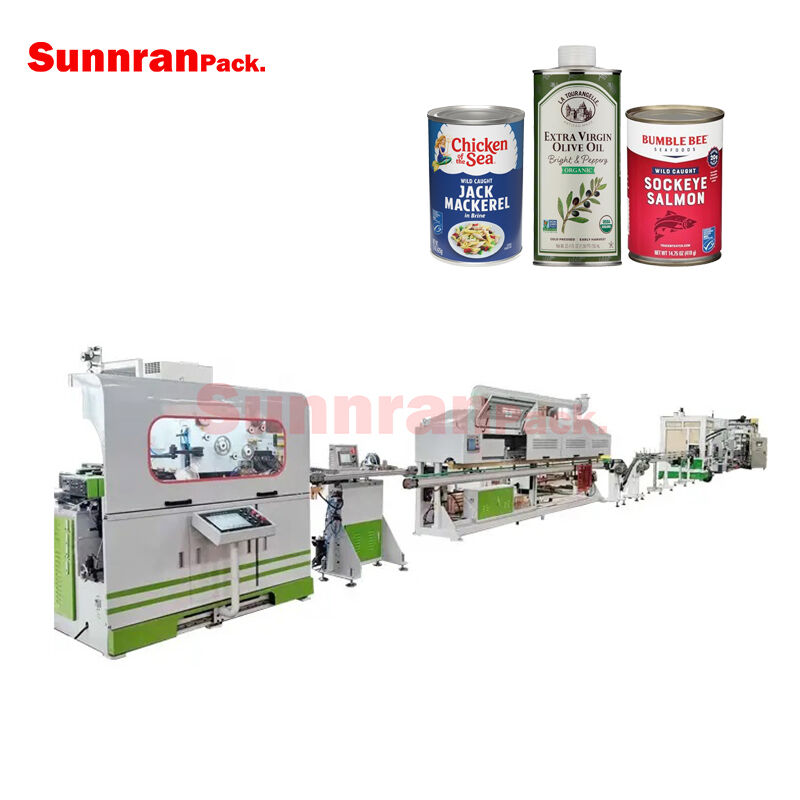

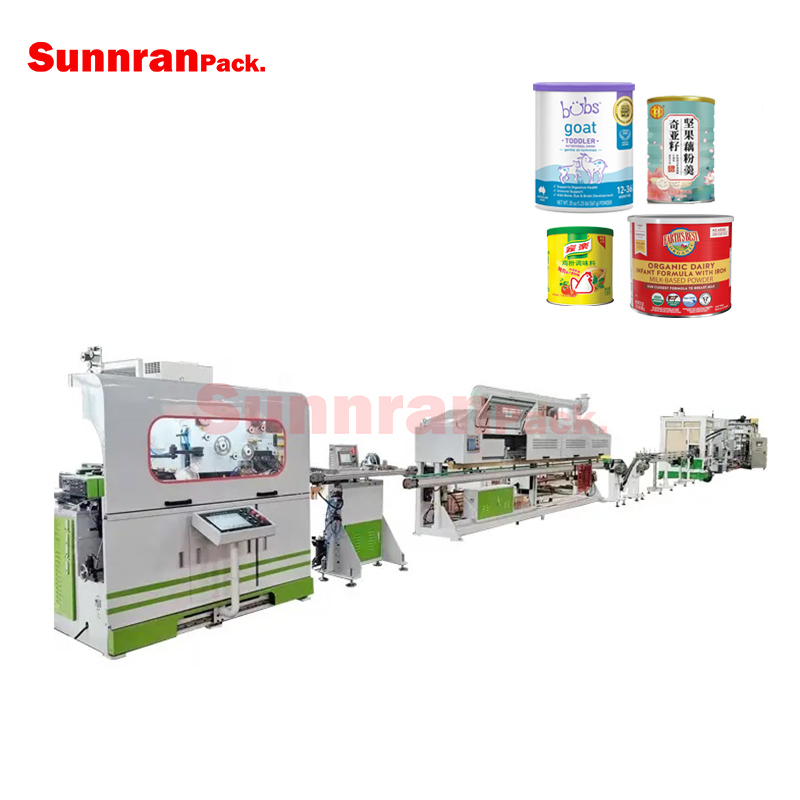

Automatic Food Can Making Line for Milk Powder Can Canned Food Olive Oil Making Machines
Automatic Food Can Making Line for Milk Powder Can Canned Food Olive Oil Making Machines Automatic Food Can Making Line for Milk Powder Can Canned Food Olive Oil Making Machines Automatic Food Can Making Line for Milk Powder Can Canned Food Olive Oil Making Machines
Contact Now

Detail Information
Automatic: Yes Power(w): 30KW
Condition: New Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation Voltage: 380V/50HZ
Application: Tin Can

Product Description

Automatic Food Can Making Line for Milk Powder Can Canned Food Olive Oil Making Machines 0

Technical parameters:

Item Specification Item Specification
Welding frequency 150-500Hz Weld seam overlap 0.3mm-0.4mm
Welding speed 20m-45m/min Power supply 3-phase/AC 380V 50Hz
Production capacity 360 cans/min Installed power 30KW
Can body diameter ø52mm-ø153mm Cooling water >0.4MPa, 12-20°C, 100L/min
Can height 70mm-260mm (320mm) Air consumption ≥600L/min >0.5Mpa
Adapt to tinplate thickness 0.16mm-0.28mm Device Weight Approx. 4000KG
Copper wire diameter Φ1.26mm-Φ1.38mm Dimensions(LWH) 3200mm2000mm1980mm

Specifications:

  1. Core Process: Integrates sheet gathering, ironing, rounding, and welding.

  2. Control System: Mitsubishi/Omron PLC, servo, and motion control for intelligent digital operation.

  3. Key Components: Uses international brands (Siemens, Mitsubishi, SMC, etc.) for reliable performance.

  4. HMI: Chinese/English touchscreen with clear fault alarms and diagnosis for quick troubleshooting.

  5. Easy Changeover: Servo-driven can pushing and feeding for fast size switching.

  6. Durable Build: Key parts made of imported steel, wear-resistant ceramics, and hard alloys.

  7. Rounding Unit: Superior ironing with scratch prevention; scissor-type lift platform is more stable than hydraulic.

  8. Smart Spacing: Intelligent speed control & precision clutch adjust can gap to 1-3mm, saving copper wire cost.

  9. Cooling Protection: Auto alarm & shutdown if water flow is low, protecting welding wheel.

  10. Options: Mercury-free welding system and remote control available.
