50CPM high speed pail making line

Product Description

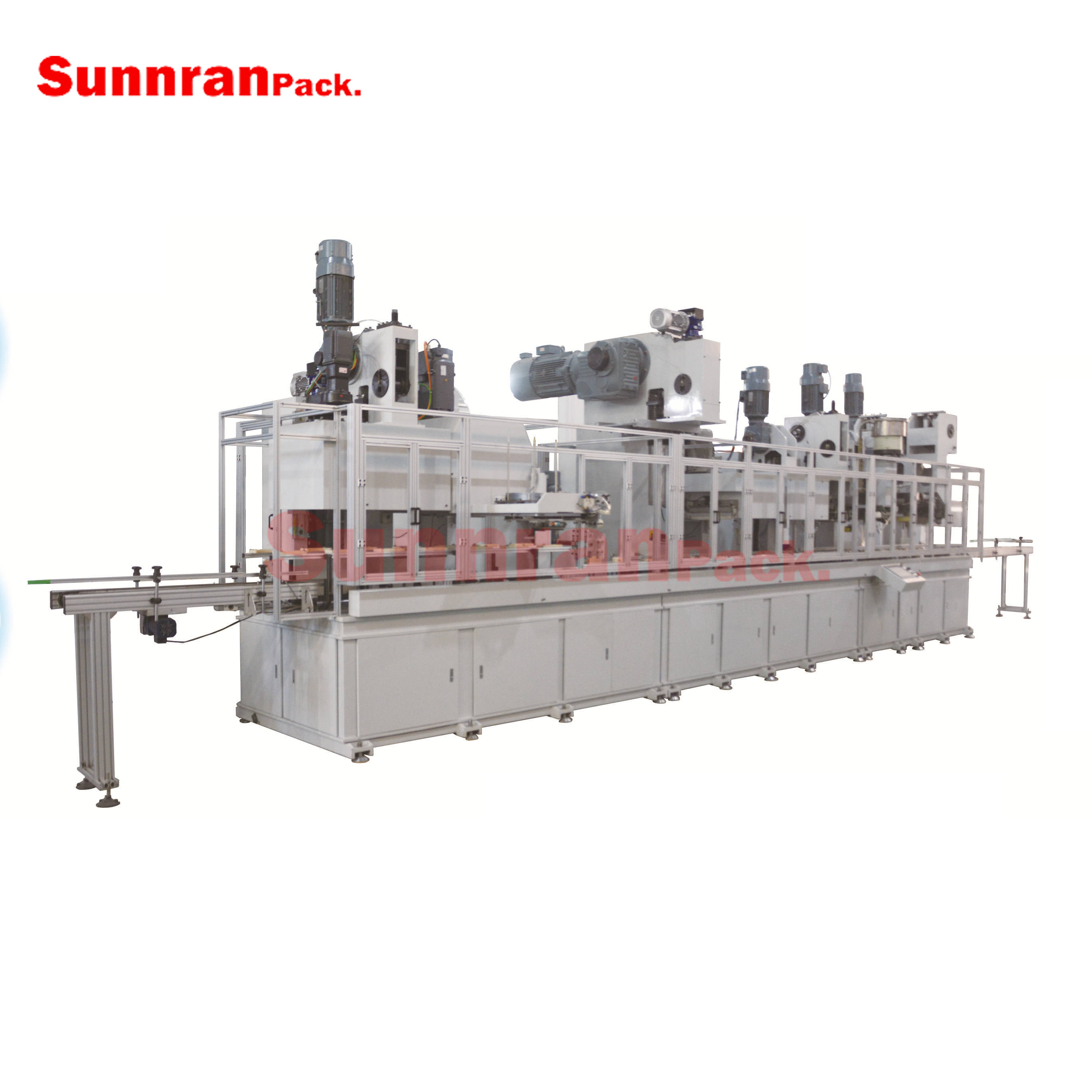

50CPM high speed pail making line

Sunnran packaging machinery Co.,Ltd. always supplys the highest adanced can making machineries to customers.

The line to be introduced is this high speed pail making line which can meet customer's high production demand.

This line standardly configures with original Siemens Motion Control System & German SEW reducer.Purely mechanical cam transmission, mechanical cam conveying,cam holding can. Speed& can heights can be adjusted by HMI. Assembled with protection device for can jam, flanging & curling by rollers, turnover by servo, independent servo system for push-up can.Customers can add the absolute value servo motor, to make the adjustment of the line more convenient(Additional cost will be charged ). It also has the locating function for beading position, to avoid the scratch after can stacking. Using the independent electrical control cabinet with German Rittal cooling system, makes the electrical control system run more steadily.

Technical parameter:

Output:Max.55CPM
Power of whole line:APP.52KW
Applicable can diameter:Φ260-290mm
Voltage:Three-phase four-line 380V(Can be configured according to different countries)
Applicable can height:250-480mm
Air pressure:Not lower than 0.6Mpa
Applicable tinplate thickness:0.28-0.48mm
Weight:APP.15T
Applicable tinpla tetemper:T2.5-T3
Dimension(LxWxH):6050mmx1950mmx3100mm
