Tin can welding machine for aerosol can making

Minimum Order Quantity : 1 Price : negotiable
Delivery Time : 90 days Payment Terms : L/C, T/T, D/P, D/A
Supply Ability : 60
Place of Origin: make in China Brand Name: sunnranpack

Product Description

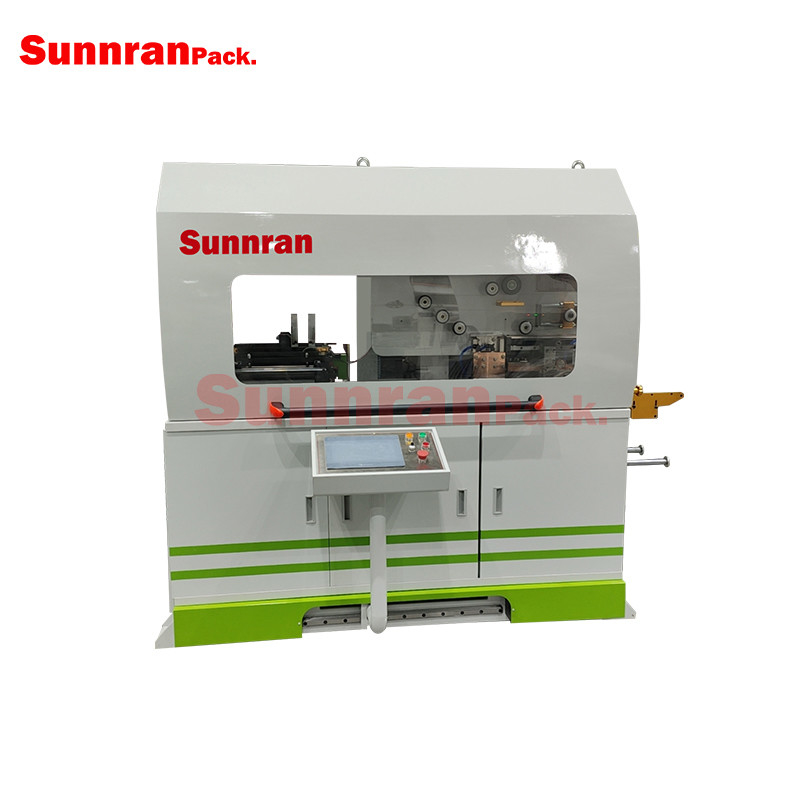

Tin can welding machine for aerosol can making



The resistance welding machine for tinplate cans is a welding equipment that utilizes current passing through the two joints of the tinplate can to generate heat energy, instantly melting the metal material at the joints and forming a thermoplastic connection. The welding process does not require any additional welding materials, and it is known for its fast welding speed and strong joints. It is one of the connection technologies with stable quality and high work efficiency. The application of the resistance welding machine for tinplate cans is very extensive, mainly used in the manufacturing of tinplate cans, oil cans, chemical cans, food and beverage cans, and other container products. These container products have high demand and quality requirements, and welding through the resistance welding machine can ensure the quality and stability of the products, as well as improve work efficiency.



Name

Automatic Tin Can body Welding Machine

Usage

It's used for can body roll forming & seam welding

Welding Speed

6-18m/min

Capacity

150-300 cans/min

Can Diameter

Φ52-Φ153mm

Can Height

60-240mm

Verlap

0.4mm

Sheet Thickness

0.16-0.3mm

Can Material

Tinplate, Steel-based

Tin Coating

5#(1.12g/m2) -- 100#(2.24g/m2)

Temper

T2.5 -- DR8

Copper Wire Diameter

Φ1.38mm, Φ1.5mm

Cooling Water

0.4-0.5Mpa, 12-18°C 10L/min

Power

380V, 50Hz, 30KW

Compressed Air

600L/min

weight

1800kg

dimension

2200*1900*1400mm
