Pail Lid Cover Automatic Pail Lid Press Tin Can Making Machine End Production Line

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : Wooden case Delivery Time : 150 working days
Payment Terms : L/C, T/T Supply Ability : 200
Place of Origin: Made in China Brand Name: Sunnranpack
Certification: CE

Detail Information

High Light:

Pail Lid Cover Automatic Press


Automatic Pail Lid Press Can Making

Product Description

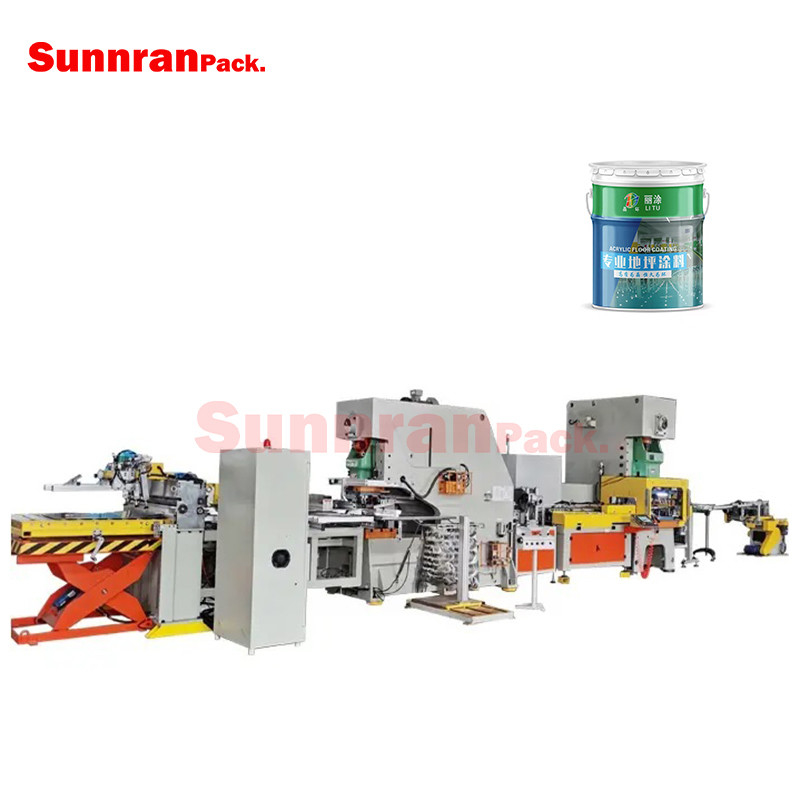

Pail Lid Cover Automatic Pail Lid Press Tin Can Making Machine End Production Line


The high precision automatic press line is used for the production of 10-25L pail lid. It adopts high precision CNC feeding system. The processing step is cutting(100T potral press or 100T deep throat C type press), drawing(63T C type press), curling for UN cover.


Normal pressure 80T
Max stroke times 80
Max die installed 1~2
Max sheet size 1050*1050mm
Max sheet tnickness 0.4mm
Total power 35kw
Installation size 3400*1700*3200mm
Total weight 16T


Product Features:

  • The loading weight of hydraulic lifting platform is over 2.5ton

  • Auto feeding system adopts servo motor
  • Adopts professional double sheet detector with the advantage of sensitivity and stability
  • The robot arm clamper with Panasonnic electronic detection device can automaticlly alarm for bad clamping
  • Auto cover out detect
  • Waster material release automatically, waster material collector
  • Auto failure detect
  • Use for sheet smaller than 1050*1050mm
  • The CNC stroke for each pair of axis is over 1100mm
  • Use for both scroll cut and square sheet size material
