40CPM 60KW Full Auto Production Line For 18-20L Square Cans

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : Wooden case Delivery Time : 120 working days
Payment Terms : T/T Supply Ability : 20
Place of Origin: Made in China Brand Name: Sunnranpack
Certification: CE Model Number: SR

Detail Information

Automatic: Yes Certification: CE
Condition: New Warranty: 1 Year
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support,Video Technical Support,Field Installation Voltage: 380V/50HZ,Customized
High Light:

60KW Full Auto Production Line


40CPM Full Auto Production Line


20L Square Cans Auto Production Line

Product Description

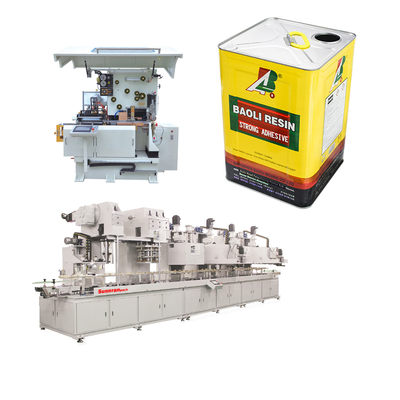

Full-auto production line for 18-20L Square cans

This line adopts purely mechanical cam transmission, cam conveying can, cam holding can, and makes the speed continuously adjustable.Using grip flanging and advanced seaming technology, it makes the seaming result tight and nice. The whole line use machines joint and flexible control system, not only saving space, but also performing higher synchronization. With protection device for can jam, it makes the production process run safely, smoothly and fast, which also ensure the seaming quality in the meantime.

Product Paramenters
No Item Data
1 Capacity 40CPM
2 Applicable range 18L-20L Square can
3 Applicable can height 200-420mm
4 Tinplate thickness 0.25-0.35mm
5 Tinplate temper T2.5-T3
6 Power supply 380V, 50HZ, 60KW
7 Air supply Not lower than 0.6Mpa
8 Dimension 8400x2150x2850


Production Process
Can standing conveyor -> 1st locating ->2nd locating -> Expanding ->Paneling -> Bottom flanging-> Bottom seaming -> Turn over -> Top flanging -> Top seaming-> Finish products
Product Specification
40CPM 60KW Full Auto Production Line For 18-20L Square Cans 0
