Duplex Slitter Tin Can Making Machine Automatic 0.5mm Thickness 40spm

Minimum Order Quantity : 1 Price : $23,000.00 - $70,000.00/Pieces
Packaging Details : Wooden case Delivery Time : 120 working days
Payment Terms : L/C, T/T Supply Ability : 20
Place of Origin: Guangdong, China Brand Name: Sunnran

Detail Information

Type: Packaging Line Applicable Industries: Metal Packing
Showroom Location: None Condition: New
Application: Food, Chemical, Aerosol Packaging Type: Case
Packaging Material: Wood Automatic Grade: Automatic
Driven Type: Electric Dimension(L*W*H): 5500x2620x1553mm
Weight: 6500 KG Warranty: 1 Year
Key Selling Points: Easy To Operate Marketing Type: Hot Product 2019
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Motor
Product Name:: Duplex Slitter Automatic Gang Slitter For Can Making Max Feeding Dimension:: 1100x1100mm
Min Feeding Dimension:: 600x600mm Thickness:: 0.12-0.5mm
Speed:: 40spm Elivery Time:: 120 Days
High Light:

Tin Can Making Machine Slitter

,

0.5mm Tin Can Making Machine

,

40spm Can Making Machine 40spm

Product Description

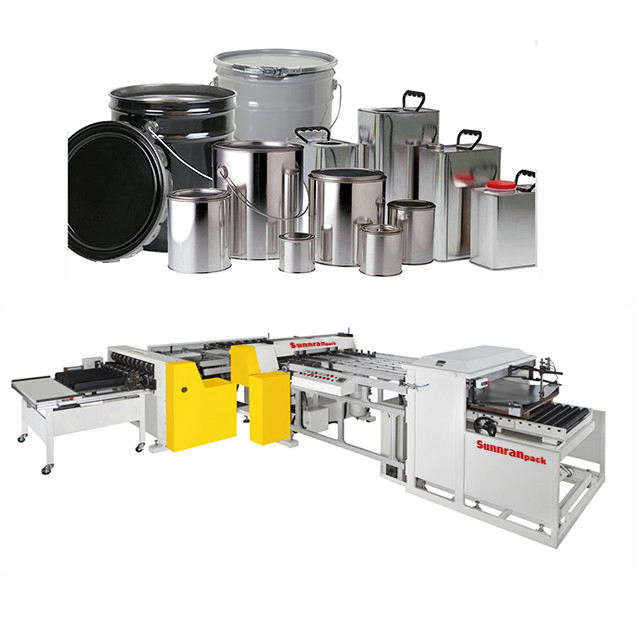

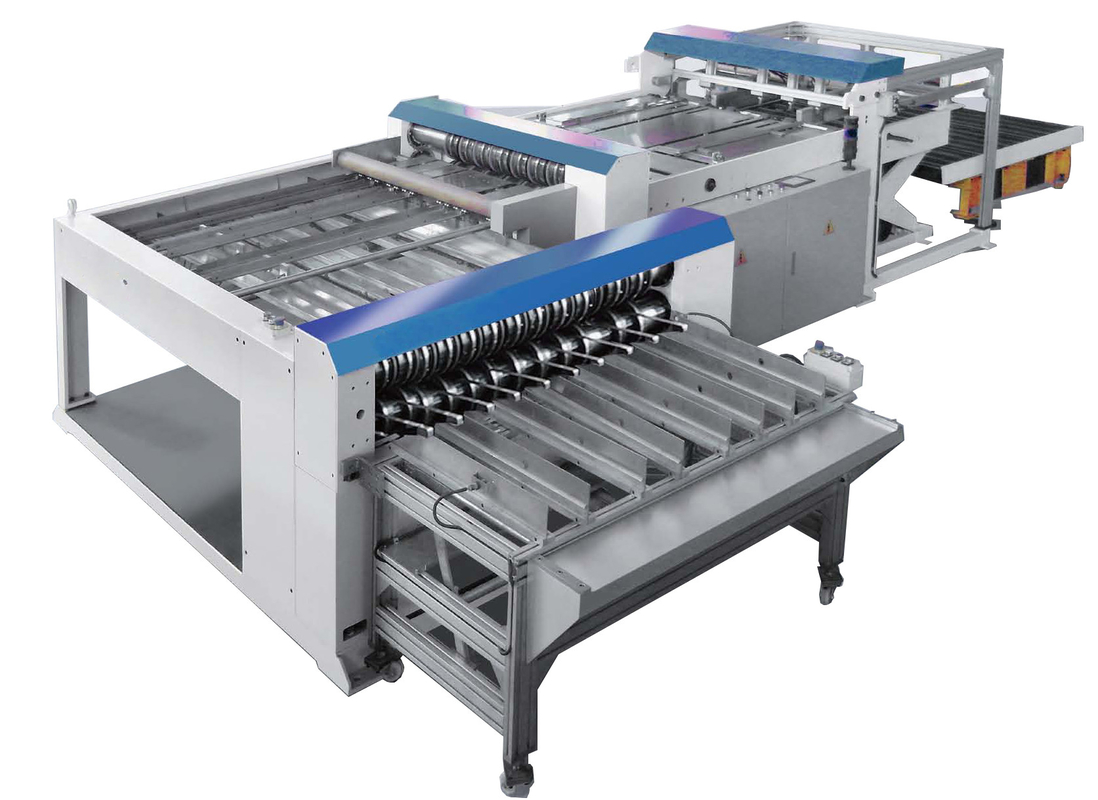

Automatic duplex slitter for can making



The duplex slitter is one of the most important pieces of equipment in a 3-piece can production line. The slitting machine is used to cut the tinplate into can body blanks in the correct size. Our duplex slitter is high quality and an optimal solution for your metal packaging factory.

Sunnran's duplex splitter is specifically designed for canned food factories and empty can manufacturing plants. It is also suitable for slitting sheet metal into similar sizes for other industries, and can meet the demanding requirements of a high-speed resistance welding machine.

Advantages:
1. Our duplex slitter takes the tinplate with a vacuum, and uses a gear motor to automatically control the height of the tin plate.
2. The wheel cutter's rotation is stable and has a sleep operation, allowing the can body blanks to be uniform in size.
3. The single adjuster ensures the right angle both vertically and horizontally.
4. Our duplex slitter is simply designed and is easy to maintain or replace.
5. The oil pressure wheel cutter holder and the tungsten steel blade can be installed, but are not required.
6. The duplex slitter is equipped with Mitsubishi electrical control components and Yuken hydraulic components, offering high accuracy and stability, easy operation and easy adjustment.



Technical Parameters



Max. feeding size 1200mm × 1200mm
Min. feeding size 600mm × 600mm
Slitting thickness 0.12-0.50mm
Slitting speed 30SPM
Slitting diagonal tolerance ≤0.05mm
Max. 1st slitting quantity 6 strips
Max. 2nd slitting quantity 18 strips
Power consumption 12 Kw
