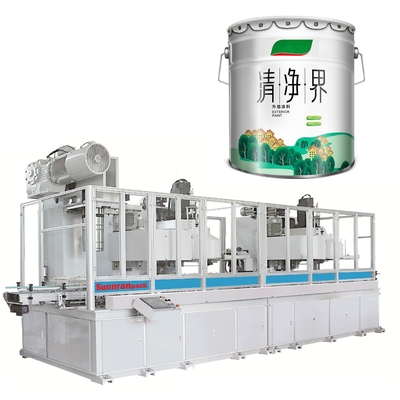

45CPM Steel Drum Making Machine For Chemical Fully Automation

Minimum Order Quantity : 1 Price : Negotiable
Packaging Details : Wooden case Delivery Time : 150 working days
Payment Terms : L/C, T/T Supply Ability : 20
Place of Origin: Guangdong, China Brand Name: Sunnran
Certification: CE

Detail Information

Type: Packaging Line Applicable Industries: Chemical
Showroom Location: None Condition: New
Application: Chemical Packaging Type: Vacuum Packing , Wooden Case
Packaging Material: Tinplate Automatic Grade: Fully-automation
Driven Type: PLC Or Advanced Motion Control System Voltage: 380V
Dimension(L*W*H): 6050x1900x3100mm Weight: 17000 KG
Warranty: 1 Year Key Selling Points: High Quality With Competitive Price
Marketing Type: Ordinary Product Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: PLC, Motion Control System Applicable Range:: Rectangular Can
Output:: Max.45 CPM Can Size:: 10-25L
Air Pressure:: Not Lower Than 0.6Mpa Connection Height:: 1000±10mm
After Warranty Service: Video Technical Support Local Service Location: None
High Light:

45CPM Steel Drum Making Machine

,

17000KG Steel Drum Making Machine

,

380V Steel Drum Making Machine

Product Description



Drum Tin Can Making Machine-Can Making Machine For Steel Drum

45CPM Steel Drum Making Machine For Chemical Fully Automation 0

This line is developed according to customer’s special requirements. The drum body is expanding , then two flanging and rolling beading. It can use for double and tripe seam.

Output 30CPM
Applicable Can Height 180-450mm
Applicable Can Diameter 220-300mm(need to change toolings)
Air pressure Not lower than 0.4Mpa
Connection height 1000mm
Weight of whole line App.9T
Dimension 3600x1900x3050mm
Voltage 3Phase 380V 50Hz
Power of whole line About.31Kw



Welding line
45CPM Steel Drum Making Machine For Chemical Fully Automation 1
Adopts sheet upward feeding to avoid double sheet issue. Can add additional storage platform for stocking the body blanks to enable machine continuously running and enhance productivity . With new innovated frequency inverter to make perfect welding seam. Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation. After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies. Induction oven can be designed to linear or U-shape according to client’s workshop layout.
Automatic welder




Wire speed
Can diameter
Can height
Can material
Power capacity
9-24m/Min
200-260/260-290
180-450
Tinplate,Ni-plate,SS
26Kw
Internal & external coating machine




Coating speed
Can diameter
Coating width
Power Consumption
Power source
10-35m/min
52-300
10-14
0.6Kwh
220V
Induction oven




Conveying speed
Heater Qty.
Power
Cooling water
Air source
9-30m/min
3 x 2m/Heater
380V , 50Hz
>30L/min>400Kpa/cm2<20℃
