High speed small rectangular can making line square can production machine

Price : $250,000.00 - $290,000.00/Pieces
Place of Origin: Guangdong, China Brand Name: Sunnran

Detail Information

Type: Packaging Line Applicable Industries: Food & Beverage Factory, Paint
Showroom Location: None Condition: New
Application: Food, Chemical Packaging Type: Vacuum Packing , Wooden Case
Packaging Material: Tinplate Automatic Grade: Fully-automation
Driven Type: PLC Or Advanced Motion Control System Voltage: 380V
Dimension(L*W*H): 78300x1700x2450mm Weight: 10000 KG
Warranty: 1 Year Key Selling Points: High Quality With Competitive Price
Marketing Type: Ordinary Product Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: PLC, Motion Control System Applicable Range:: Rectangular Can
Output:: Max.80 CPM Can Size:: 1-5L
Air Pressure:: Not Lower Than 0.6Mpa Connection Height:: 1000±10mm

Product Description

Products Description
Rectangular can making line

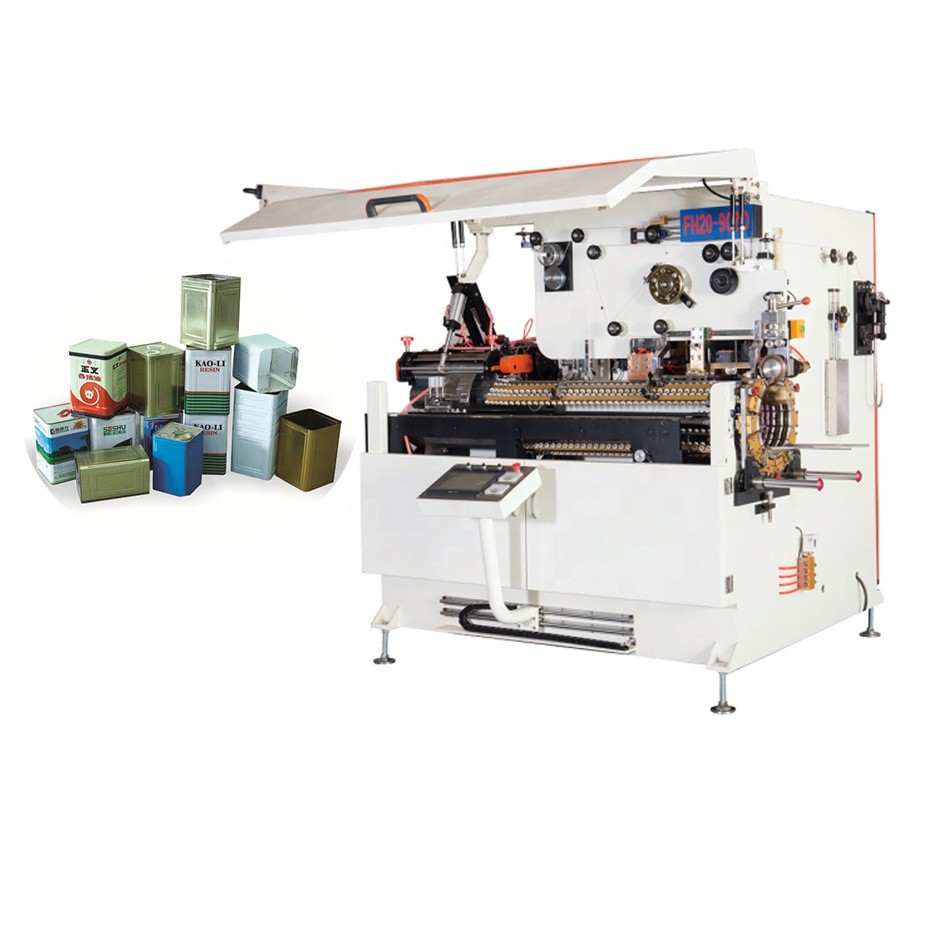

High speed small rectangular can making line square can production machine 0
The maximum speed of the production line can reach 80 cans/min, and 60 cans/min under stable working conditions.It's adopting the dual expanding technology to have better synchronism and faster speed.
Integrated single head single mold flanging and seaming to prevent the production from deformation.
Introducing Spanish seaming top technology.
It adopts advanced techniques such as dual-mould locator, dual-mould expanding, single-mould & single-head bottom flanging and seaming, can body turnover, single-tooling & single-head top flanging and seaming.
Applicable Cans
0.25-1L rectangular cans and irregular cans (need to change tooling)
Output
80CPM
Applicable Can Height
80-240mm
Applicable diagonal
60-120mm
Connection Height
1000±10mm
Weight of Whole Line
App. 15T
Dimension of Whole Line
L7,830 X W1,700 X H2,450 mm
Voltage
Three-phase four-line 380V(can be configured according to different countries)
Powder of Whole Line
25KW
Details of the machine

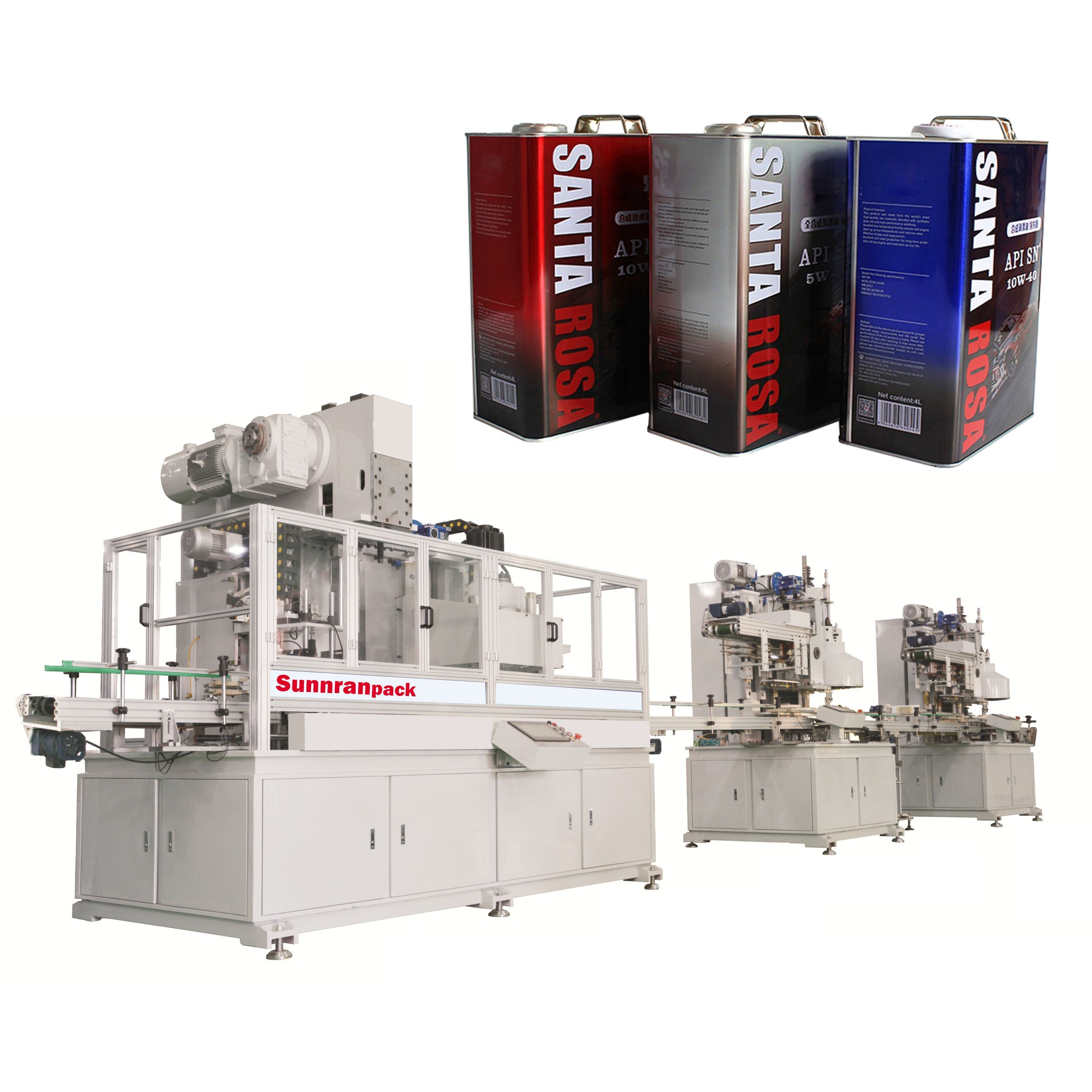

High speed small rectangular can making line square can production machine 1
Layout

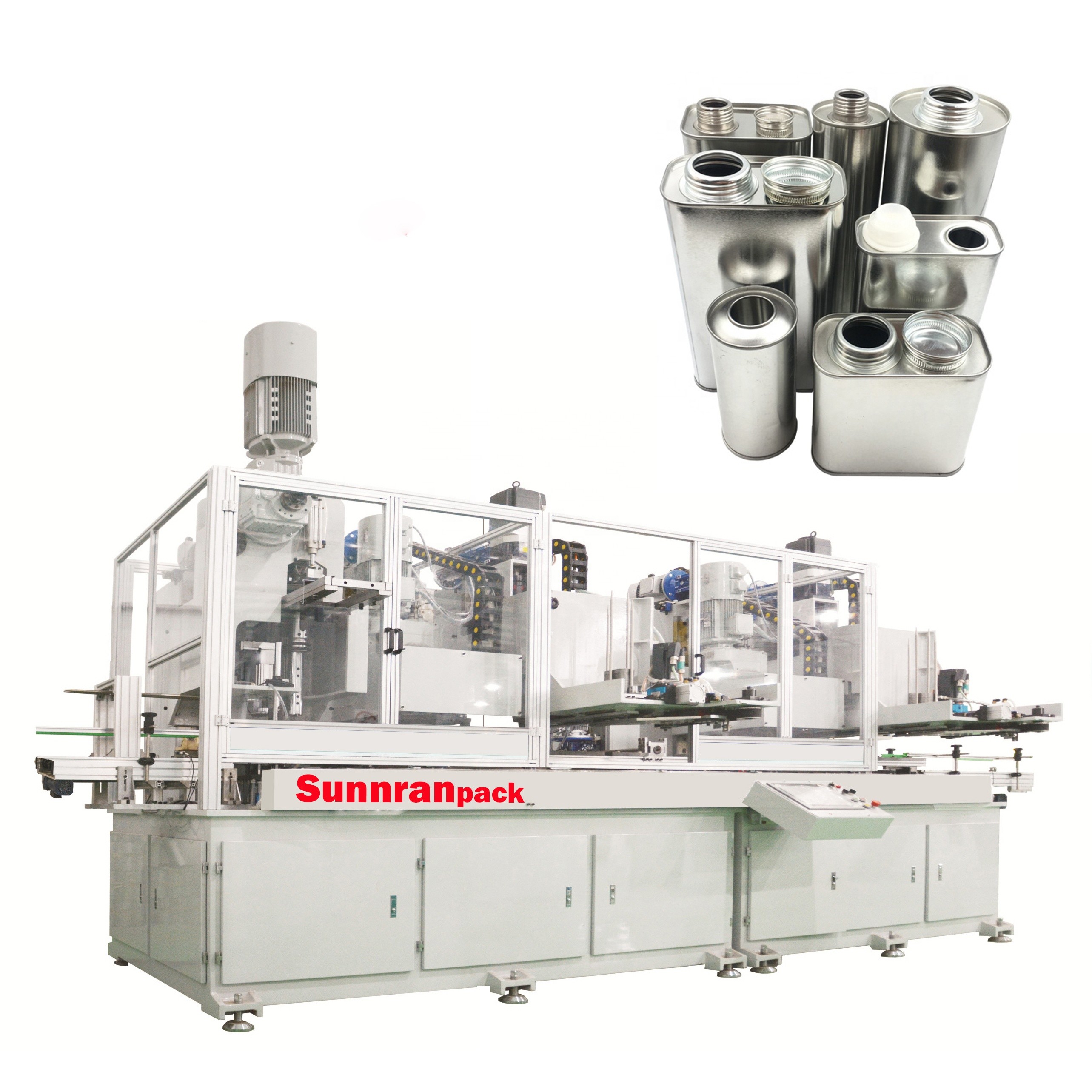

High speed small rectangular can making line square can production machine 2
Welding line

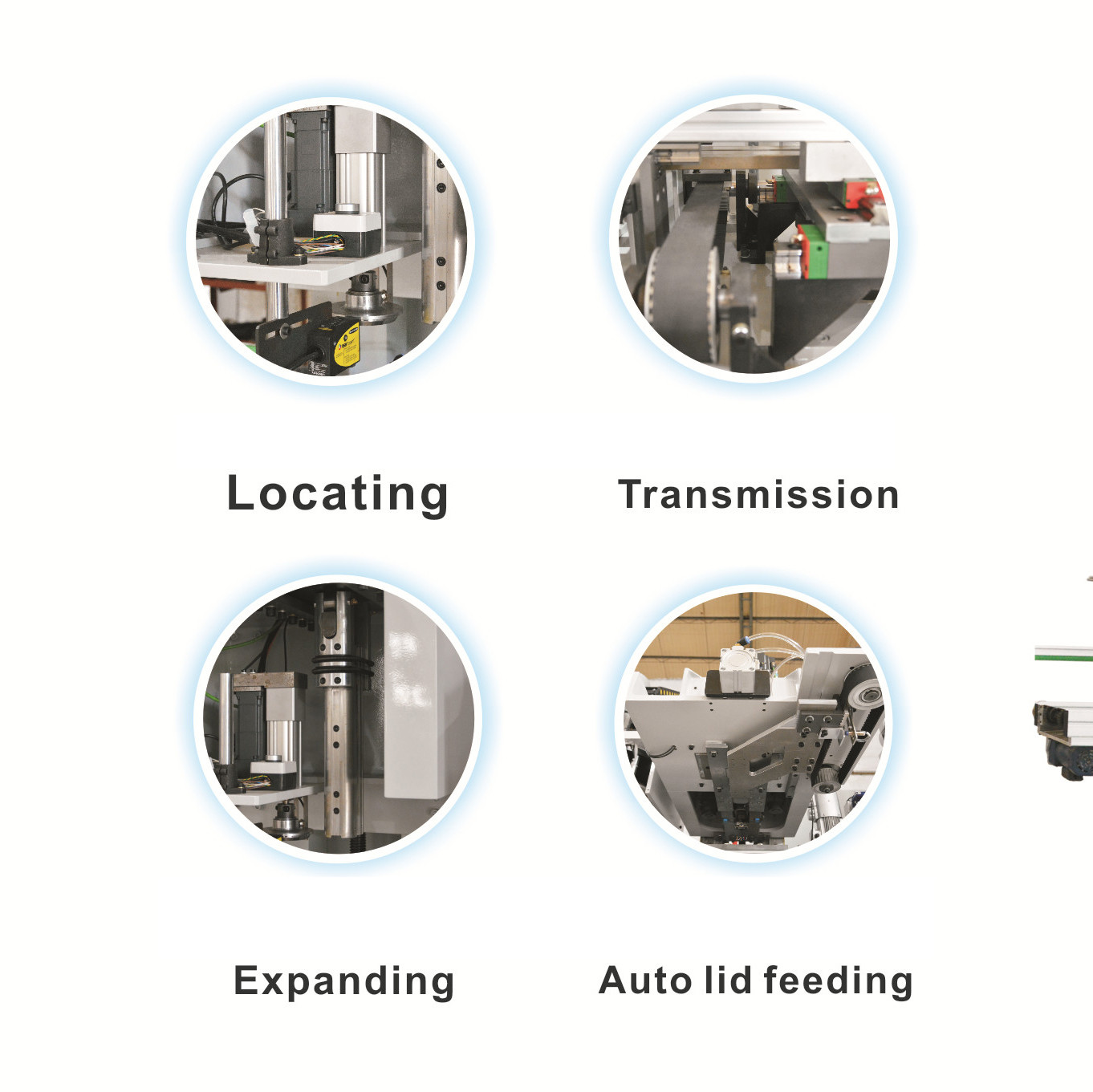

High speed small rectangular can making line square can production machine 3
Adopts sheet upward feeding to avoid double sheet issue. Can add additional storage platform for stocking the body blanks to enable machine continuously running and enhance productivity . With new innovated frequency inverter to make perfect welding seam. Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation. After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies. Induction oven can be designed to linear or U-shape according to client’s workshop layout.
Automatic welder




Wire speed
Can diameter
Can height
Can material
Power capacity
6-24m/Min
99-180mm
70-330
Tinplate,Ni-plate,SS
26Kw
Internal & external coating machine




Coating speed
Can diameter
Coating width
Power Consumption
Power source
10-35m/min
52-300
10-14
0.6Kwh
220V
Induction oven




Conveying speed
Heater Qty.
Power
Cooling water
Air source
9-30m/min
3 x 2m/Heater
380V , 50Hz
>30L/min>400Kpa/cm2<20℃

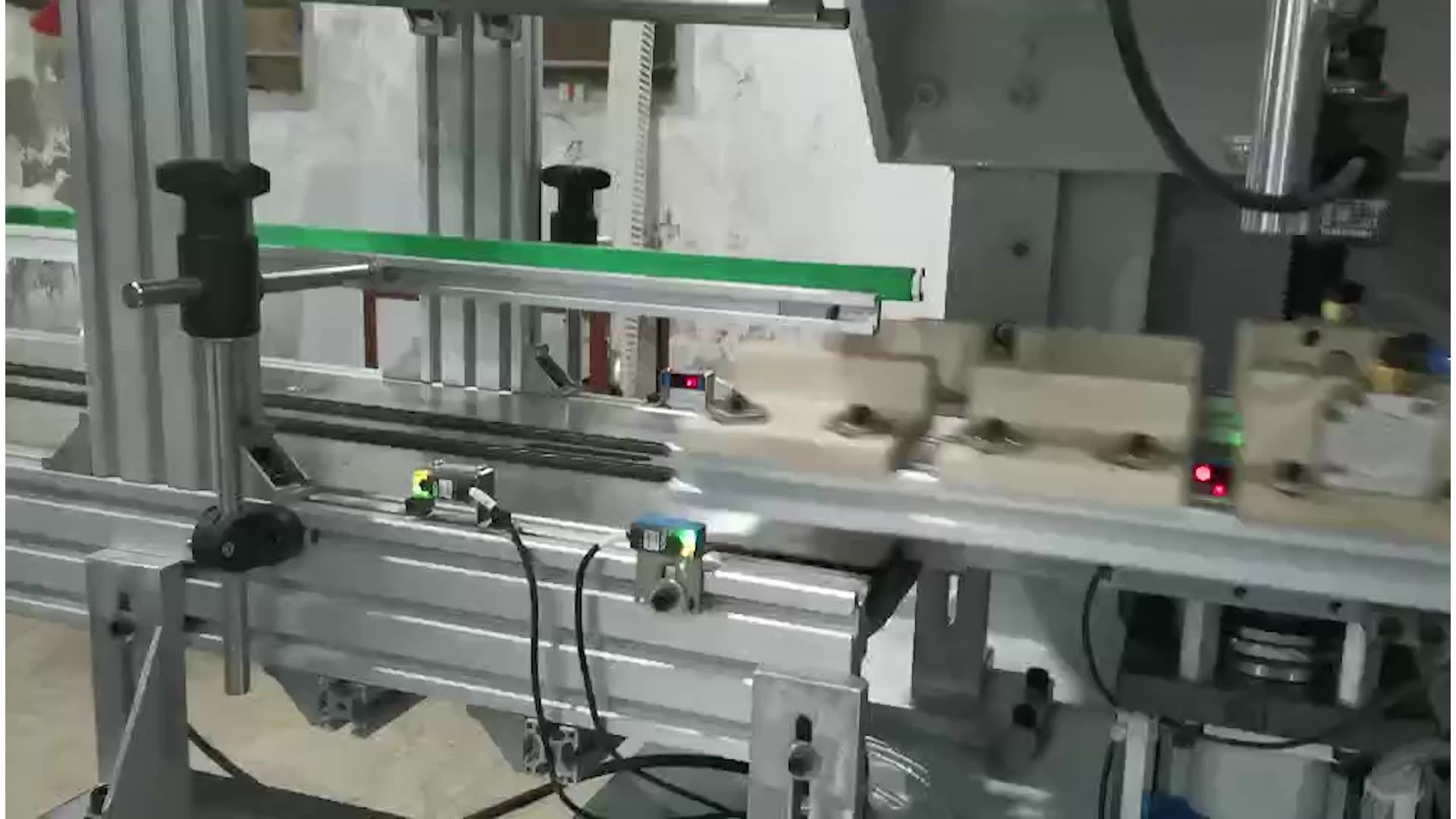

High speed small rectangular can making line square can production machine 4
High speed small rectangular can making line square can production machine 5
