High speed Rectangular can production line

Price :	$120,000.00 - $220,000.00/Pieces

Place of Origin:	Guangdong, China	Brand Name:	Sunnran

Detail Information
Type:	Packaging Line	Applicable Industries:	Food & Beverage Factory, Paint
Showroom Location:	None	Condition:	New
Application:	Food, Chemical	Packaging Type:	Vacuum Packing , Wooden Case
Packaging Material:	Tinplate	Automatic Grade:	Fully-automation
Driven Type:	PLC Or Advanced Motion Control System	Voltage:	380V
Dimension(LWH):	78300x1700x2450mm	Weight:	10000 KG
Warranty:	1 Year	Key Selling Points:	High Quality With Competitive Price
Marketing Type:	Ordinary Product	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	PLC, Motion Control System	Applicable Range::	Rectangular Can
Output::	Max.80 CPM	Can Size::	1-5L
Air Pressure::	Not Lower Than 0.6Mpa	Connection Height::	1000±10mm

Product Description

Products Description

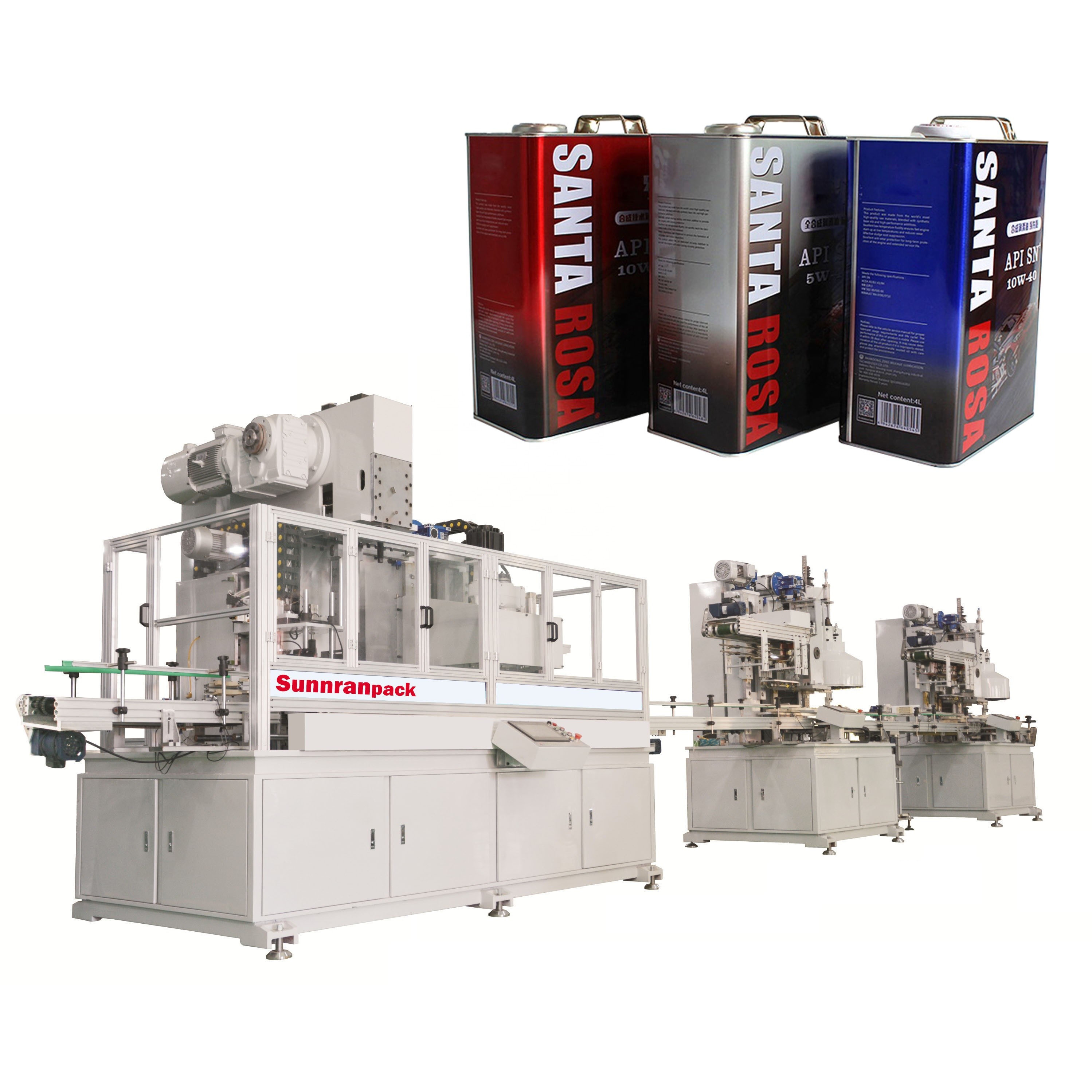

Rectangular can making line

The maximum speed of the production line can reach 80 cans/min, and 60 cans/min under stable working conditions.It's adopting the dual expanding technology to have better synchronism and faster speed.
Integrated single head single mold flanging and seaming to prevent the production from deformation.
Introducing Spanish seaming top technology.

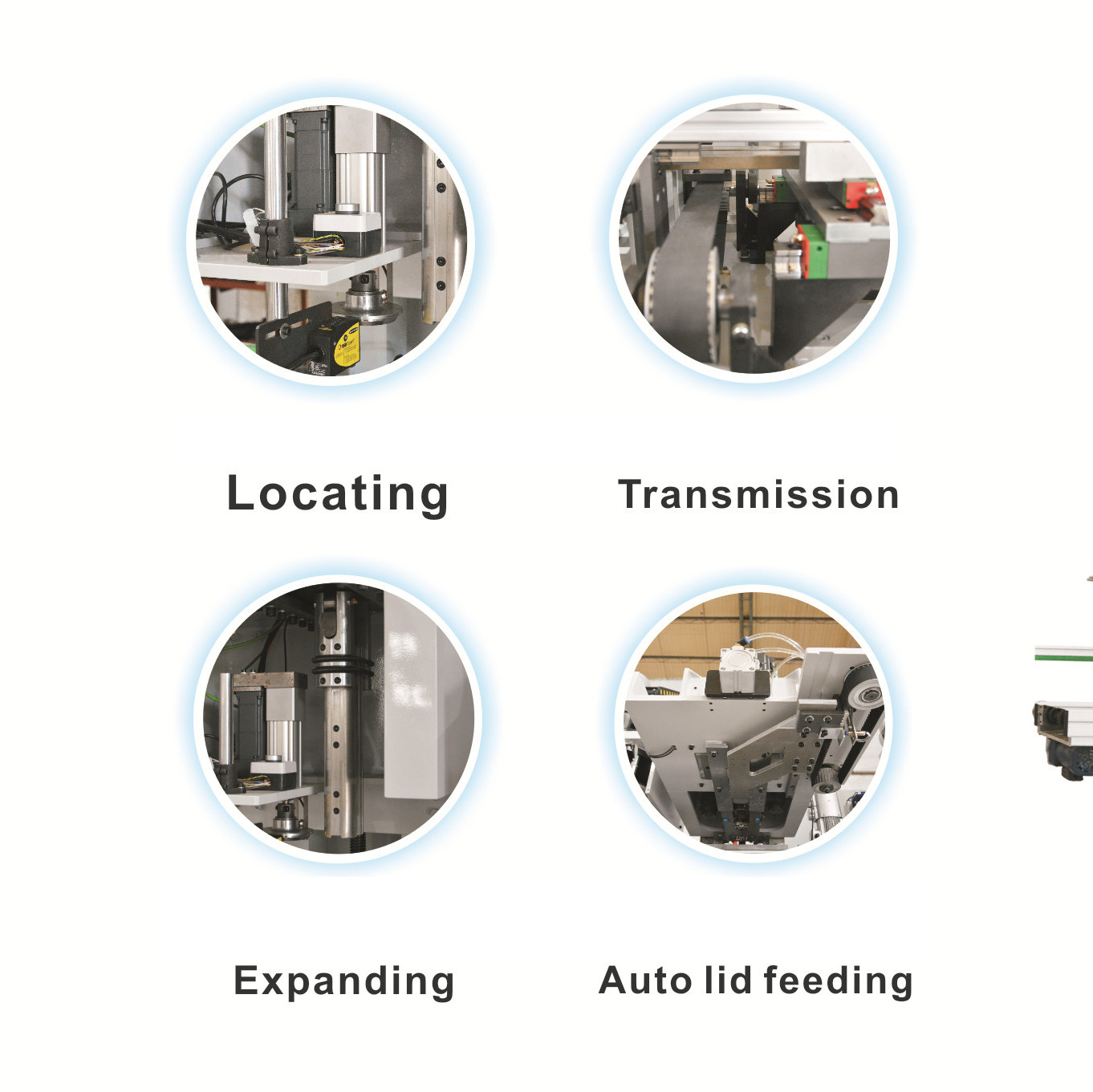

It adopts advanced techniques such as dual-mould locator, dual-mould expanding, single-mould & single-head bottom flanging and seaming, can body turnover, single-tooling & single-head top flanging and seaming.

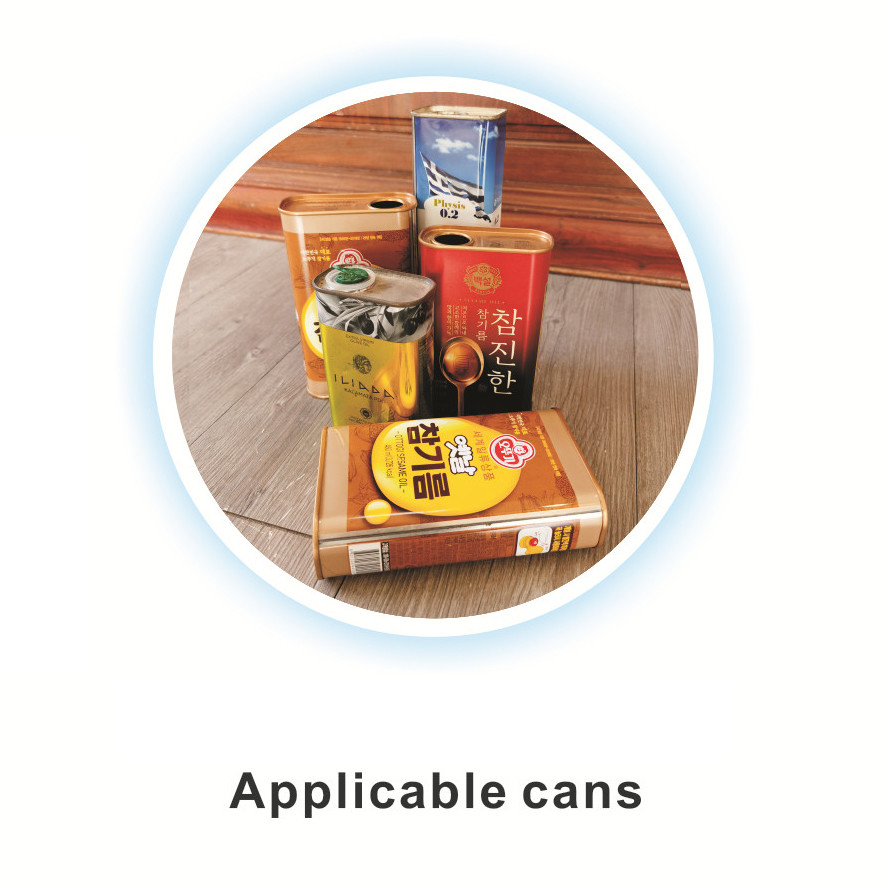

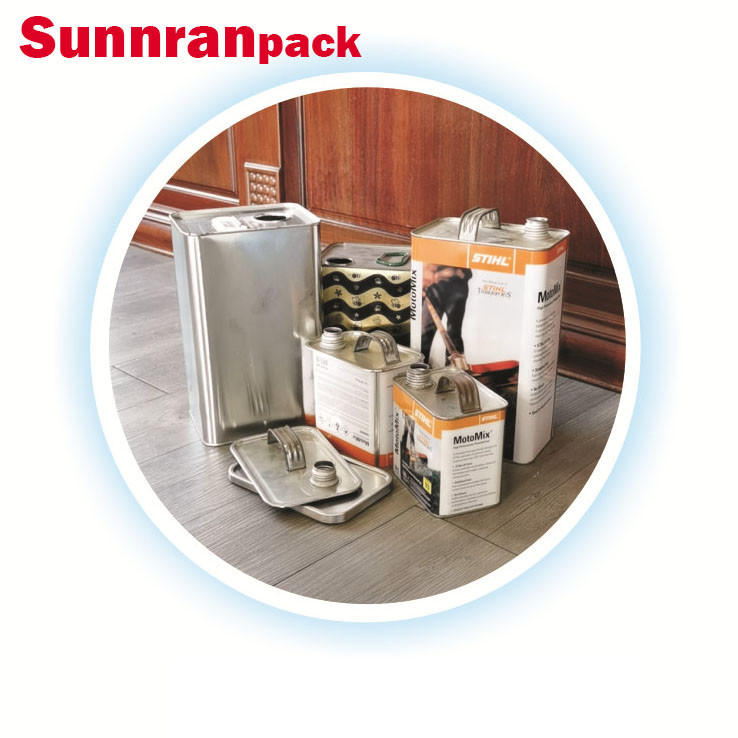

Applicable Cans	0.25-1L rectangular cans and irregular cans (need to change tooling)
Output	80CPM
Applicable Can Height	80-240mm
Applicable diagonal	60-120mm
Connection Height	1000±10mm
Weight of Whole Line	App. 15T
Dimension of Whole Line	L7,830 X W1,700 X H2,450 mm
Voltage	Three-phase four-line 380V(can be configured according to different countries)
Powder of Whole Line	25KW

Details of the machine

Layout

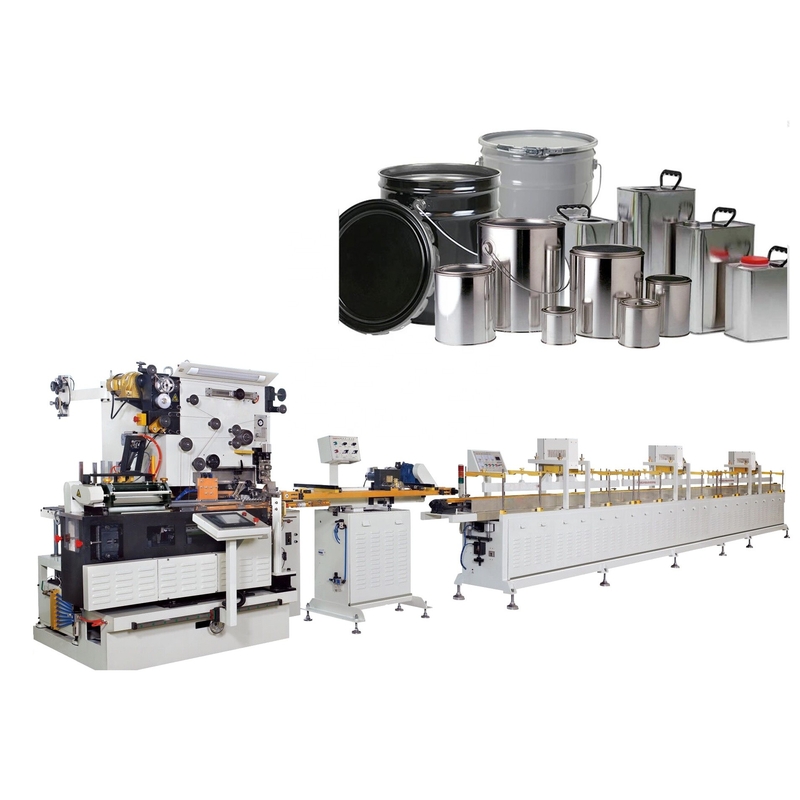

Welding line

Adopts sheet upward feeding to avoid double sheet issue. Can add additional storage platform for stocking the body blanks to enable machine continuously running and enhance productivity . With new innovated frequency inverter to make perfect welding seam. Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation. After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies. Induction oven can be designed to linear or U-shape according to client’s workshop layout.

Automatic welder
Wire speed	Can diameter	Can height	Can material	Power capacity
6-24m/Min	99-180mm	70-330	Tinplate,Ni-plate,SS	26Kw
Internal & external coating machine
Coating speed	Can diameter	Coating width	Power Consumption	Power source
10-35m/min	52-300	10-14	0.6Kwh	220V
Induction oven
Conveying speed	Heater Qty.	Power	Cooling water	Air source
9-30m/min	3 x 2m/Heater	380V , 50Hz	>30L/min>400Kpa/cm2<20℃
