UN pail can making machine

Price : $170,000.00 - $200,000.00/Pieces
Place of Origin: Guangdong, China Brand Name: Sunnran

Detail Information

Type: Packaging Line Applicable Industries: Chemical
Showroom Location: None Condition: New
Application: Chemical Packaging Type: Vacuum Packing , Wooden Case
Packaging Material: Tinplate Automatic Grade: Fully-automation
Driven Type: PLC Or Advanced Motion Control System Voltage: 380V
Dimension(L*W*H): 6050x1900x3100mm Weight: 17000 KG
Warranty: 1 Year Key Selling Points: High Quality With Competitive Price
Marketing Type: Ordinary Product Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: PLC, Motion Control System Applicable Range:: Rectangular Can
Output:: Max.45 CPM Can Size:: 10-25L
Air Pressure:: Not Lower Than 0.6Mpa Connection Height:: 1000±10mm

Product Description

Products Description

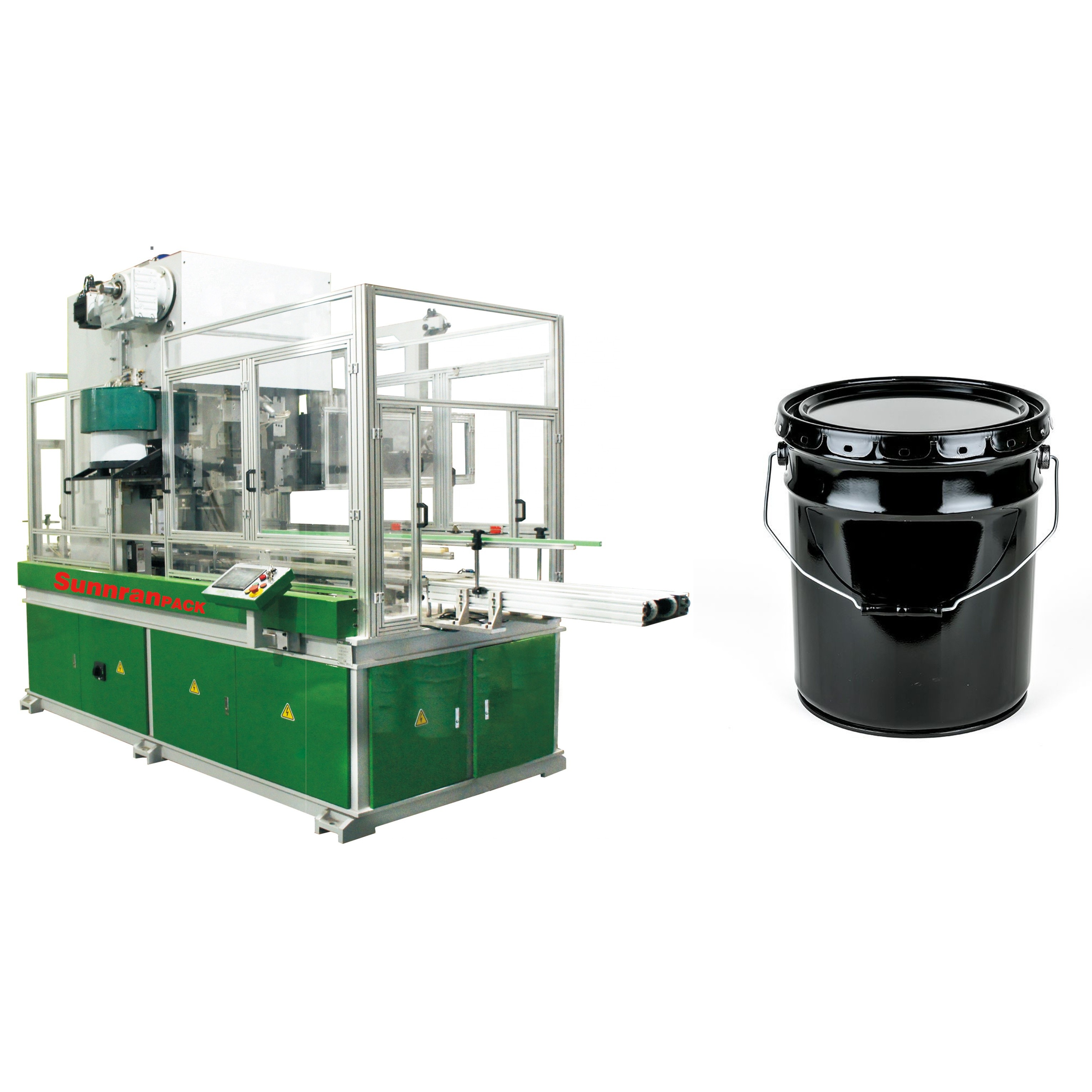

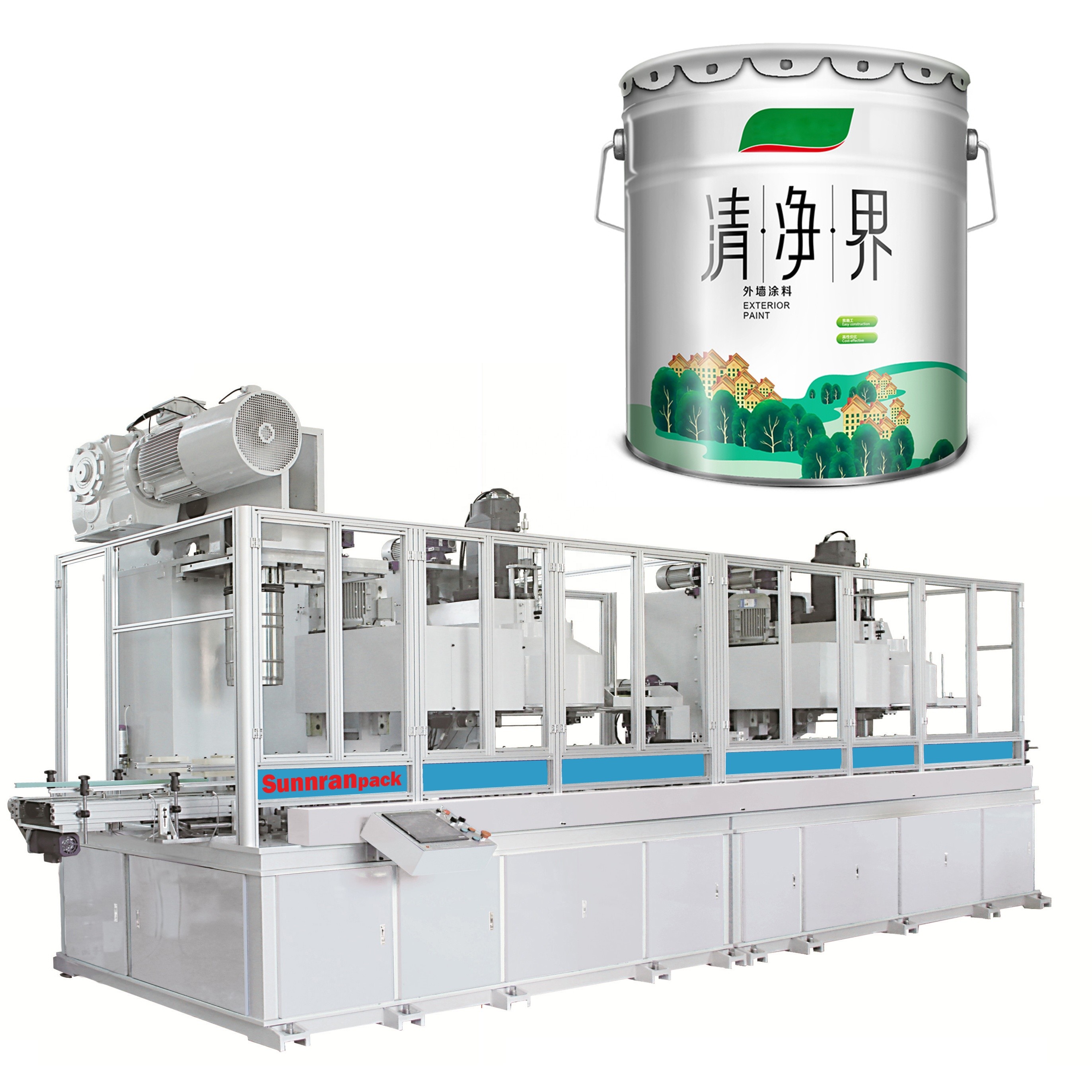

Pail can making line
UN pail can making machine 0

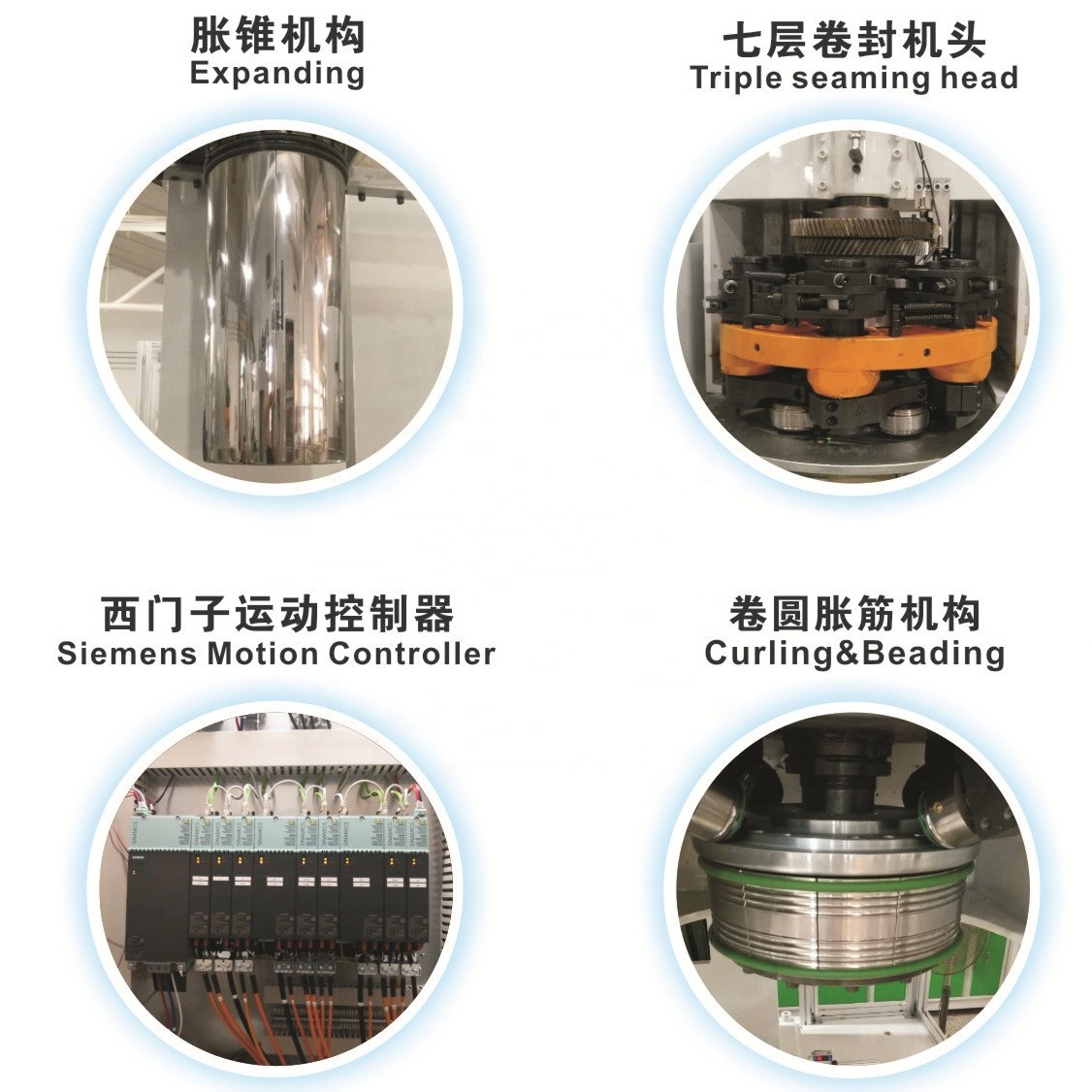

Three types of pail can making line can be selected, ZD-T18C, ZD-T18CG, ZD-T18A. ZD-T18C pail line flanges and curls the cylinders by die . Because of the resemblance of the ZD-T18C pail line and ZD-GJ18D drum line , ZD-T18C pail line can be modified for both pail and drum making . ZD-T18CG and ZD-T18A are using flanging & curling roller to make the cylinder flanged and curled. These design can adapt to different raw material and reduce defective percentage.
Model
Max Speed
Diameter range
Height range
Air pressure
Power
SR-T18CG
35CPM
220-330
100-350
≥0.6Mpa
APP.58Kw
UN pail can making machine 1
UN pail can making machine 2
UN pail can making machine 3
UN pail can making machine 4

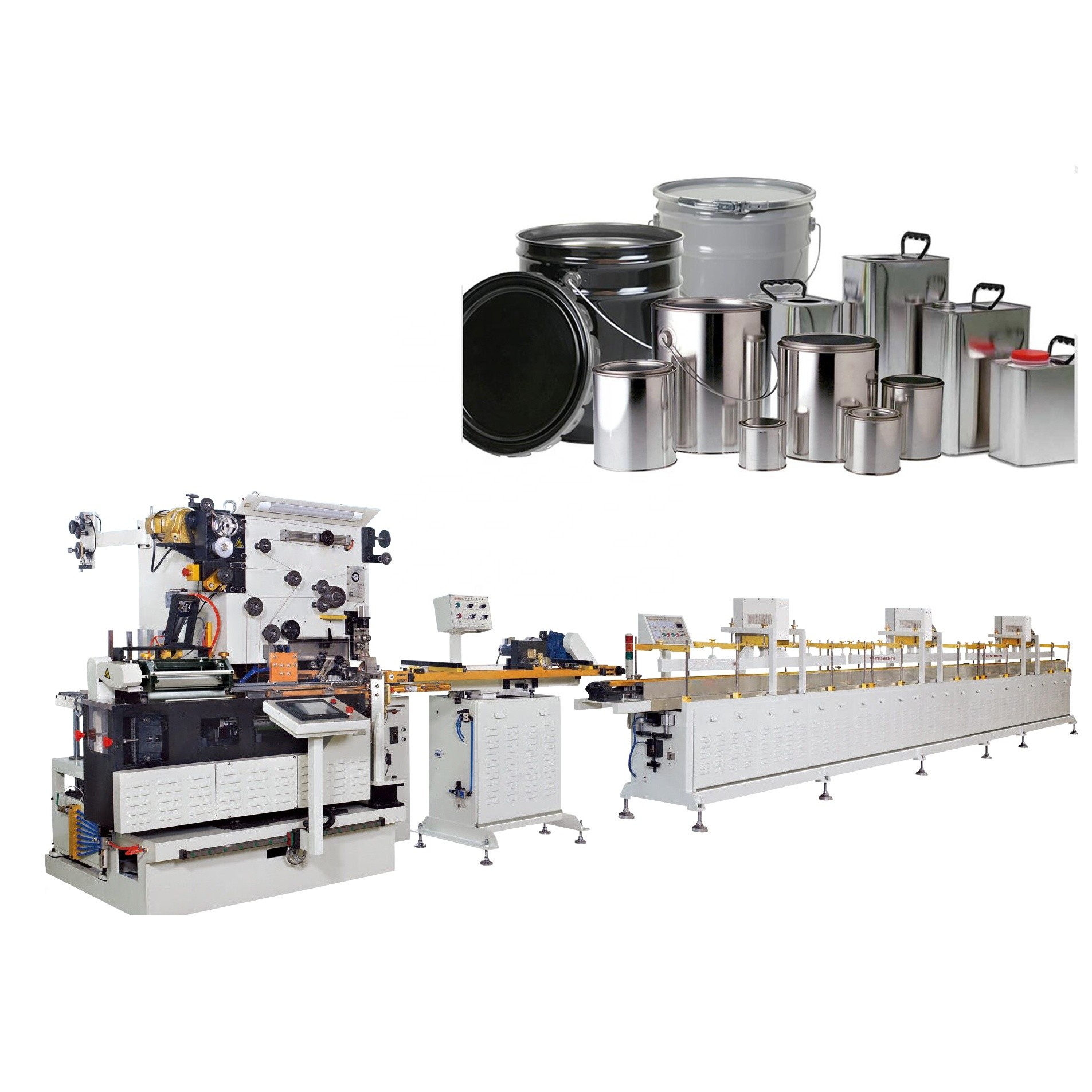

Welding line
UN pail can making machine 5
Adopts sheet upward feeding to avoid double sheet issue. Can add additional storage platform for stocking the body blanks to enable machine continuously running and enhance productivity . With new innovated frequency inverter to make perfect welding seam. Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation. After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies. Induction oven can be designed to linear or U-shape according to client’s workshop layout.
Automatic welder
Wire speed
Can diameter
Can height
Can material
Power capacity
9-24m/Min
200-260/260-290
180-450
Tinplate,Ni-plate,SS
26Kw
Internal & external coating machine
Coating speed
Can diameter
Coating width
Power Consumption
Power source
10-35m/min
52-300
10-14
0.6Kwh
220V
Induction oven
Conveying speed
Heater Qty.
Power
Cooling water
Air source
9-30m/min
3 x 2m/Heater
380V , 50Hz
>30L/min>400Kpa/cm2<20℃
UN pail can making machine 6
UN pail can making machine 7
