Full Automatic 1-5L Small Rectangular Square Can Body Production Line Making Machine

Price : $90,000.00 - $160,000.00/Pieces
Place of Origin: Guangdong, China Brand Name: Sunnran
Certification: CE

Detail Information

Type: Packaging Line Applicable Industries: Food & Beverage Factory, Paint
Showroom Location: None Condition: New
Application: Food, Chemical Packaging Type: CANS
Packaging Material: Tinplate Automatic Grade: Fully-automation
Driven Type: PLC Or Advanced Motion Control System Voltage: 380V
Dimension(L*W*H): 78300x1700x2450mm Weight: 7300 KG
Warranty: 1 Year Key Selling Points: High Quality With Competitive Price
Marketing Type: Ordinary Product Machinery Test Report: Provided
Video Outgoing-inspection: Provided Warranty Of Core Components: 1 Year
Core Components: PLC, Motion Control System Applicable Range:: Rectangular Can
Output:: Max.80 CPM Can Size:: 1-5L
Air Pressure:: Not Lower Than 0.6Mpa Connection Height:: 1000±10mm
After Warranty Service: Video Technical Support Local Service Location: None

Product Description

Products Description

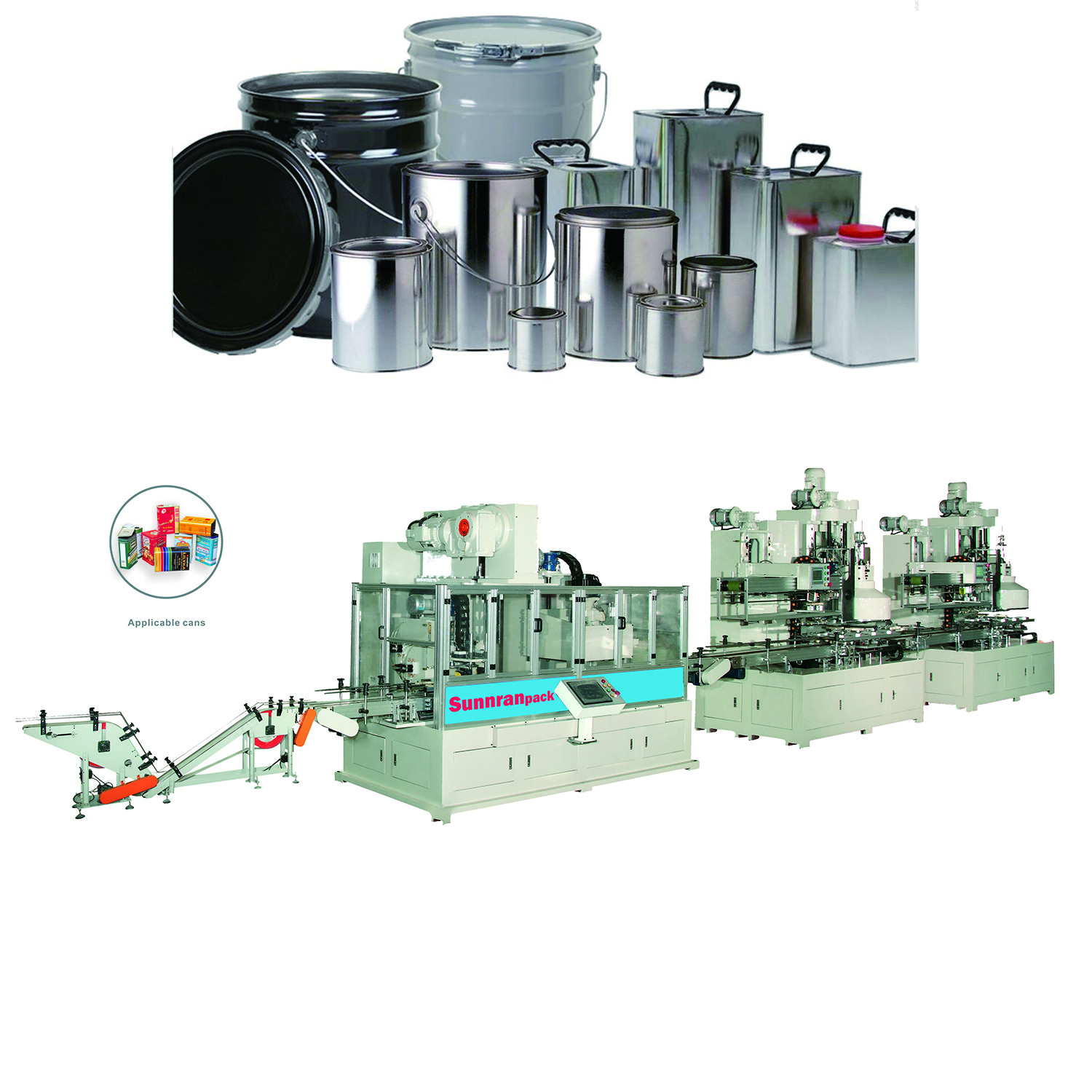

Rectangular can making line
Full Automatic 1-5L Small Rectangular Square Can Body Production Line Making Machine 0

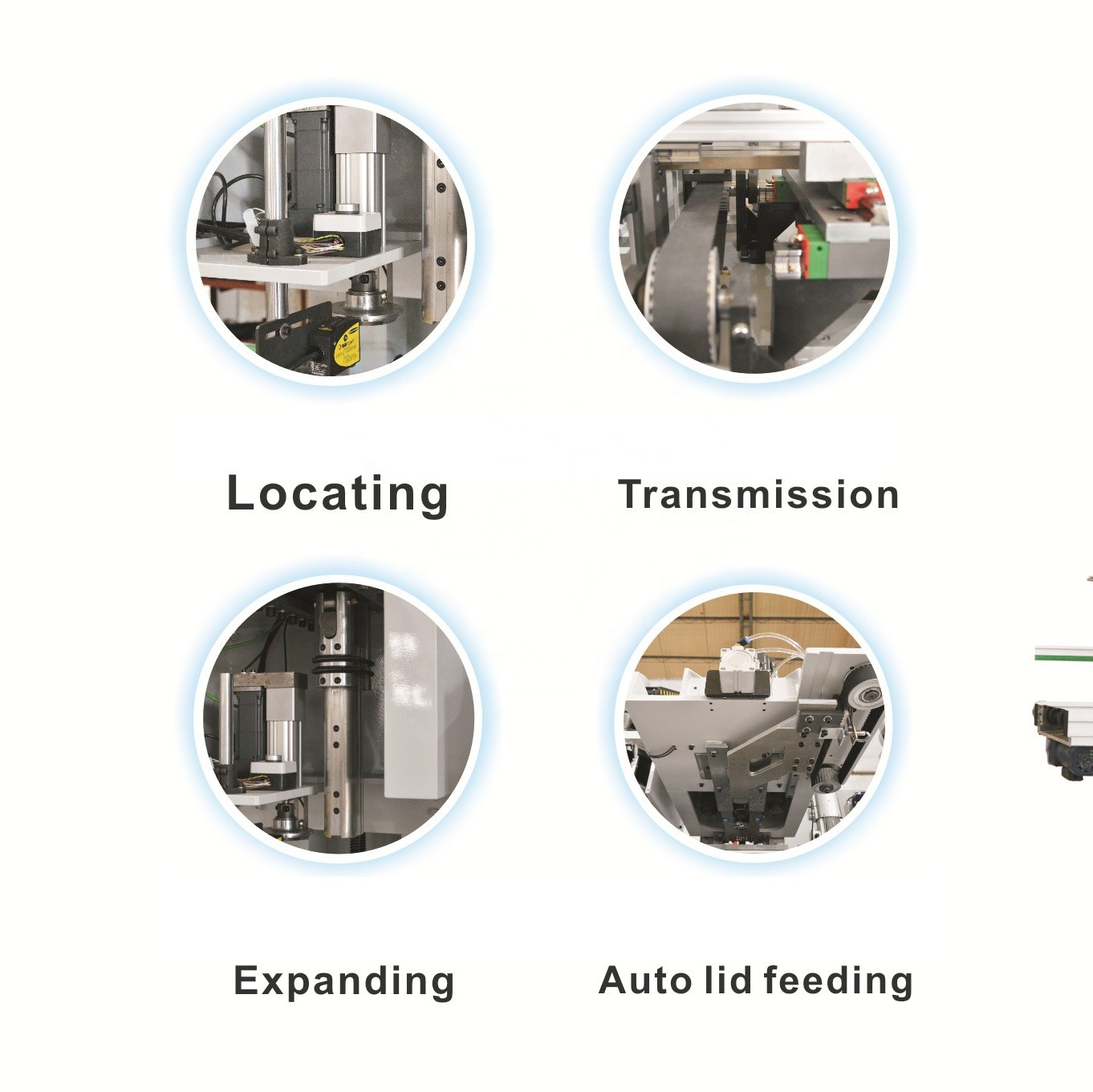

The line above has speed 28-35CPM for making 1-6L rectangular can Ultrasonic sensor equipped makes the can orientation more accurately. The adopts of dual expanding technique grants the machine better synchronism and faster speed. Integrated single head, single mold flanging and seaming can avoid can deformation effectively. The successive rotary lid delivery structure can feed the lids stably & quickly.
Model
Can sizes
Max speed
Height range
Air pressure
Power
ZD-S.
1-5L
30-35CPM
100-350mm
≥0.6Mpa
APP.25Kw

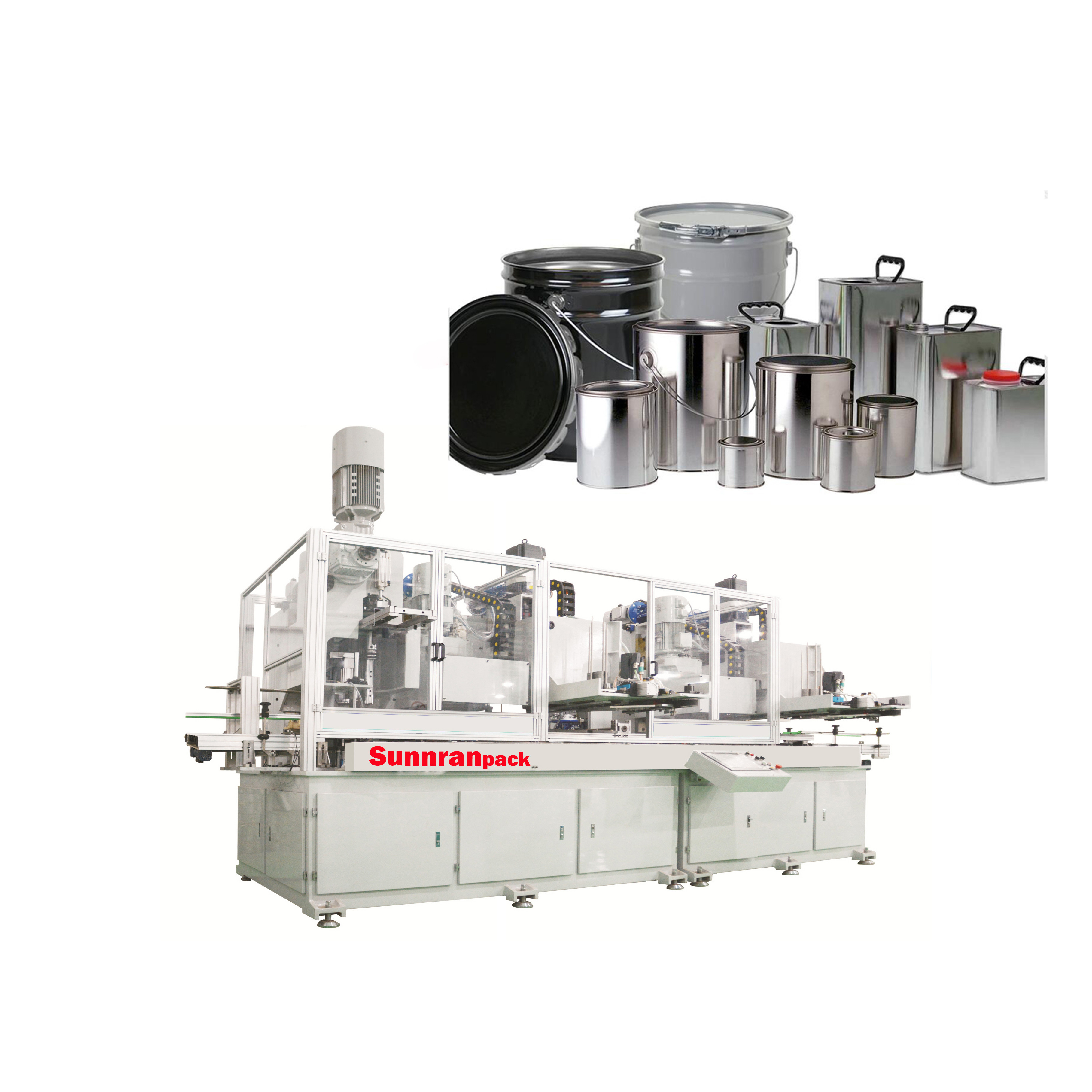

Full Automatic 1-5L Small Rectangular Square Can Body Production Line Making Machine 1
Welding line
Full Automatic 1-5L Small Rectangular Square Can Body Production Line Making Machine 2
Adopts sheet upward feeding to avoid double sheet issue. Can add additional storage platform for stocking the body blanks to enable machine continuously running and enhance productivity . With new innovated frequency inverter to make perfect welding seam. Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation. After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies. Induction oven can be designed to linear or U-shape according to client’s workshop layout.
Automatic welder
Wire speed
Can diameter
Can height
Can material
Power capacity
6-24m/Min
99-180mm
70-330
Tinplate,Ni-plate,SS
26Kw
Internal & external coating machine
Coating speed
Can diameter
Coating width
Power Consumption
Power source
10-35m/min
52-300
10-14
0.6Kwh
220V
Induction oven
Conveying speed
Heater Qty.
Power
Cooling water
Air source
9-30m/min
3 x 2m/Heater
380V , 50Hz
>30L/min>400Kpa/cm2<20℃
Full Automatic 1-5L Small Rectangular Square Can Body Production Line Making Machine 3
Full Automatic 1-5L Small Rectangular Square Can Body Production Line Making Machine 4
Full Automatic 1-5L Small Rectangular Square Can Body Production Line Making Machine 5
Full Automatic 1-5L Small Rectangular Square Can Body Production Line Making Machine 6
