High speed rectangular tin can production line

Name: High speed rectangular tin can production line
Brand: Sunnran
SKU: Sunnran
Price: 150 USD
Availability: InStock
Rating: 4.5 (100 reviews)

Price :	$150,000.00 - $320,000.00/Pieces

Place of Origin:	Guangdong, China	Brand Name:	Sunnran

Detail Information
Type:	Packaging Line	Applicable Industries:	Food & Beverage Factory, Paint
Showroom Location:	None	Condition:	New
Application:	Food, Chemical	Packaging Type:	Vacuum Packing , Wooden Case
Packaging Material:	Metal, Tinplate	Automatic Grade:	Fully-automation
Driven Type:	PLC Or Advanced Motion Control System	Voltage:	380V
Dimension(LWH):	78300x1700x2450mm	Weight:	15000 KG
Warranty:	1 Year	Key Selling Points:	High Quality With Competitive Price
Marketing Type:	Ordinary Product	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	PLC, Motion Control System	Applicable Range::	Rectangular Can
Output::	Max.80 CPM	Can Size::	1-5L
Air Pressure::	Not Lower Than 0.6Mpa	Connection Height::	1000±10mm

Product Description

Products Description

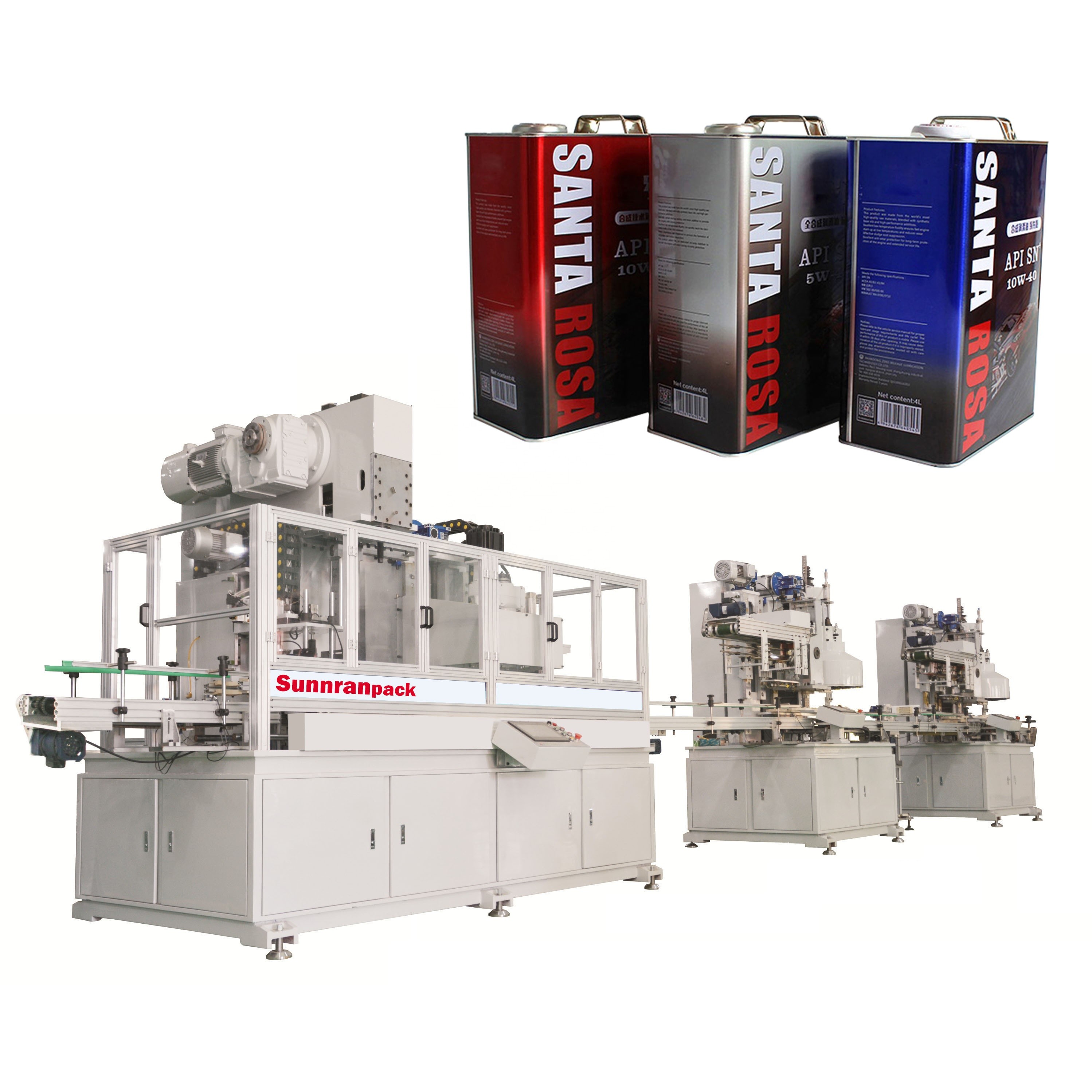

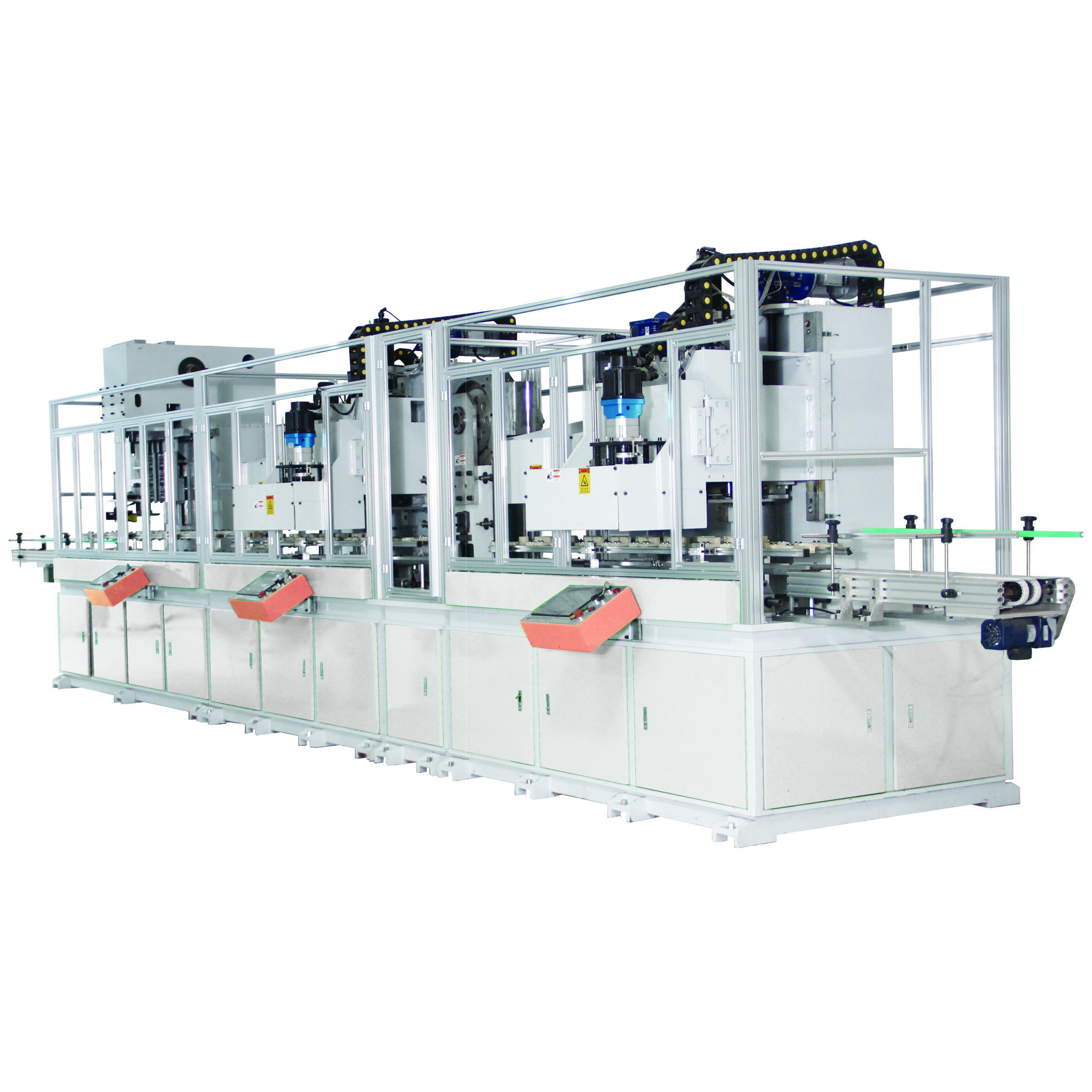

Rectangular can making line

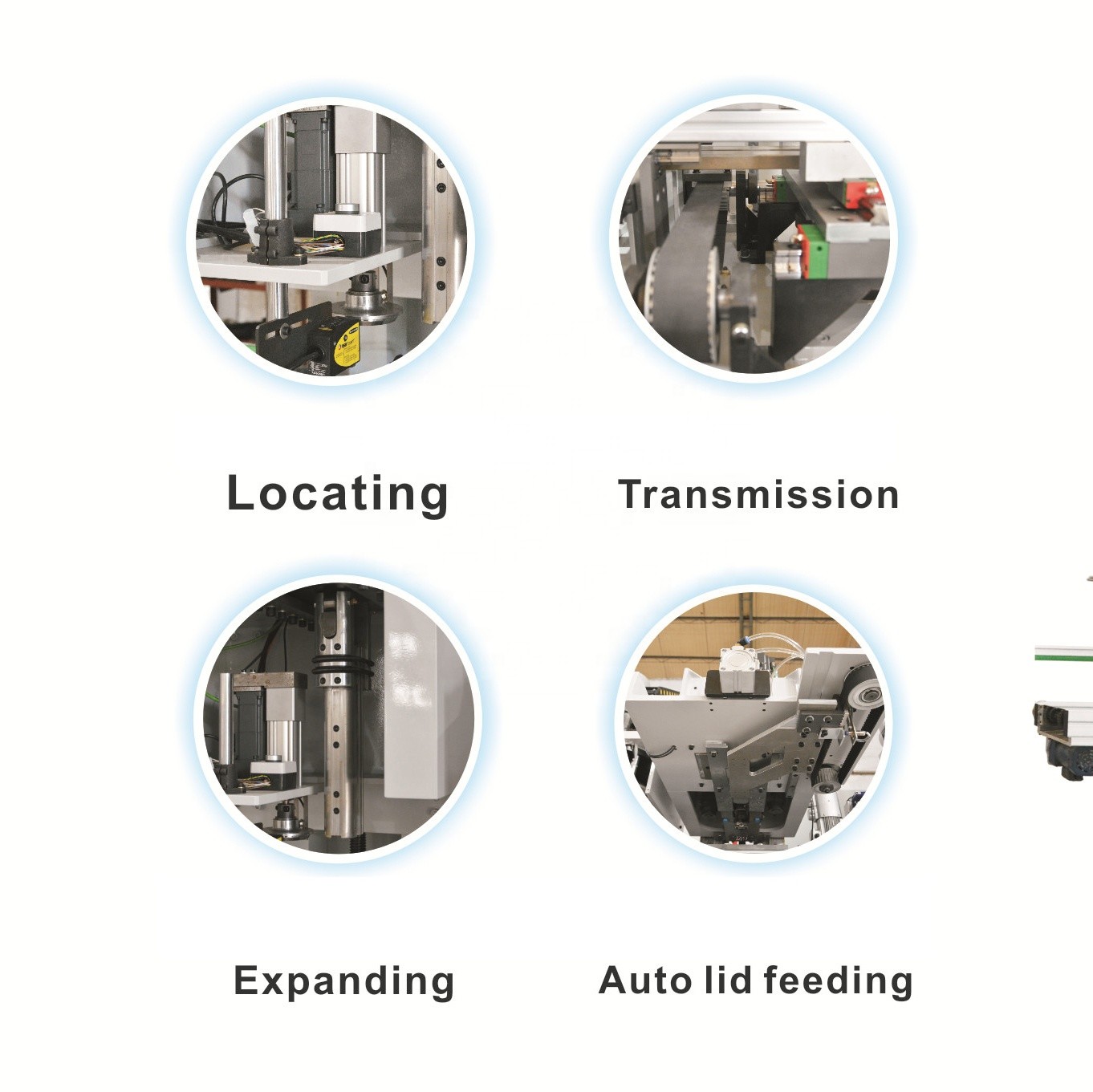

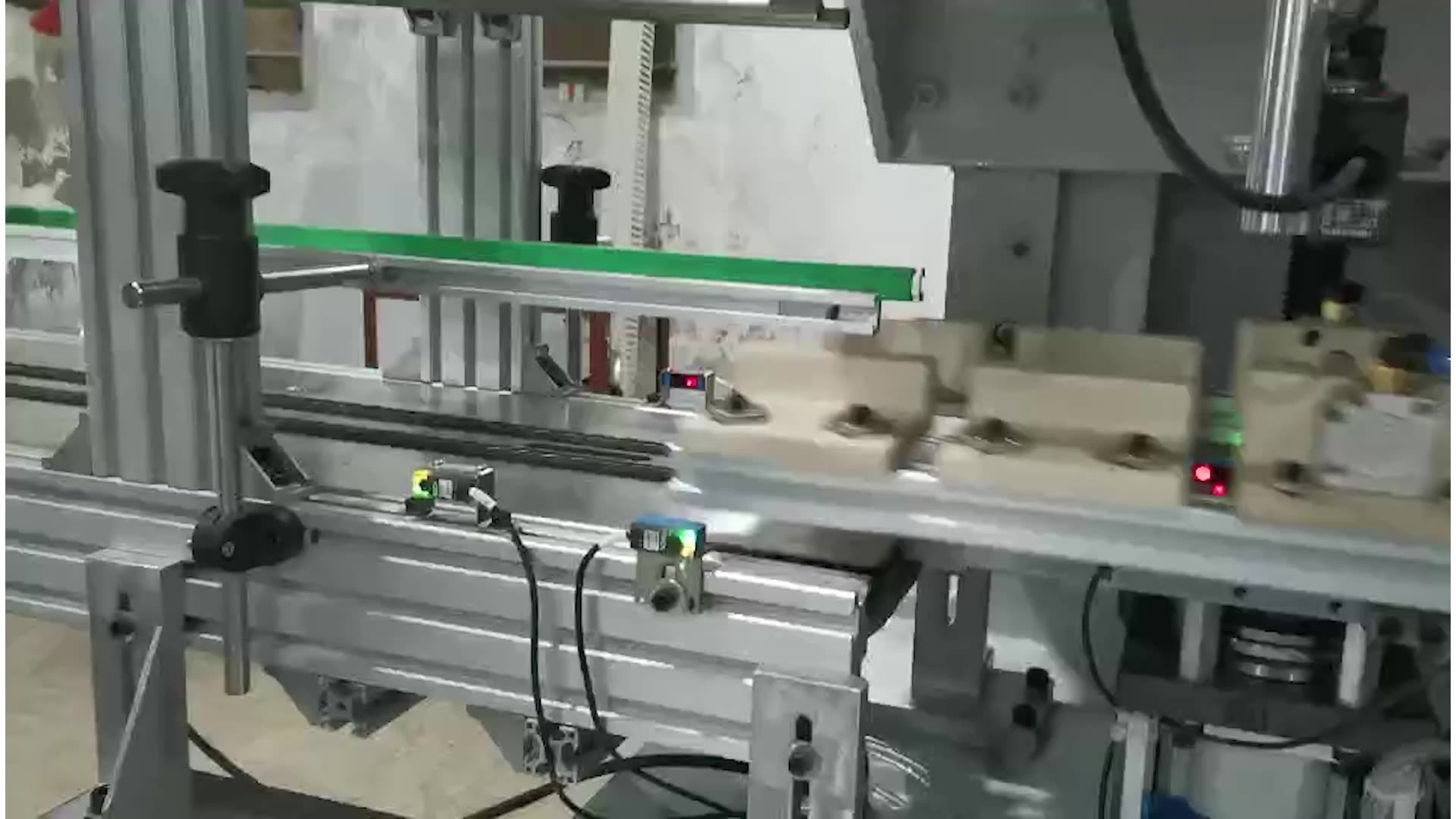

Two types of rectangular line can be selected by customer to meet their speed requirement , ZD-60S, ZD-S. ZD-60S can reach stable speed: 80CPM. Ultrasonic sensor equipped makes the can orientation more accurately. The adopts of dual expanding technique grants the machine better synchronism and faster speed. Integrated single head, single mold flanging and seaming can avoid can deformation effectively. The successive rotary lid delivery structure can feed the lids stably & quickly.

Details of the machine

Layout

Welding line

Adopts sheet upward feeding to avoid double sheet issue. Can add additional storage platform for stocking the body blanks to enable machine continuously running and enhance productivity . With new innovated frequency inverter to make perfect welding seam. Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation. After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies. Induction oven can be designed to linear or U-shape according to client’s workshop layout.

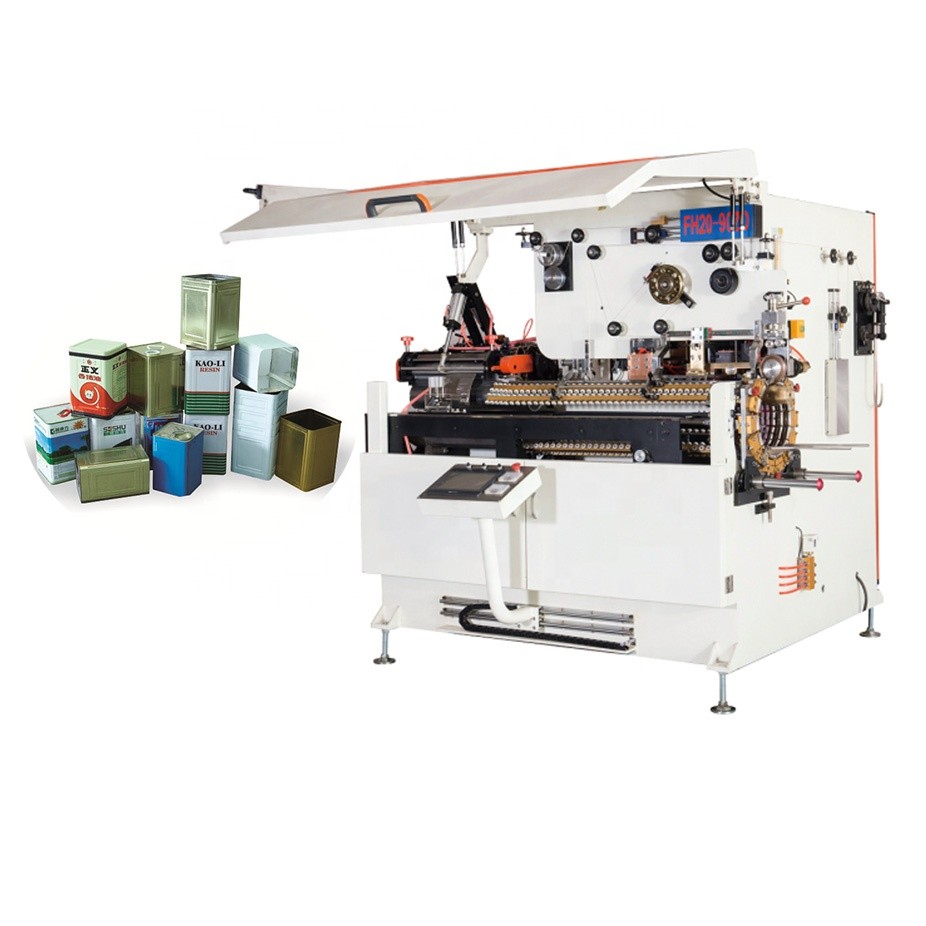

Automatic welder
Wire speed	Can diameter	Can height	Can material	Power capacity
6-24m/Min	99-180mm	70-330	Tinplate,Ni-plate,SS	26Kw
Internal & external coating machine
Coating speed	Can diameter	Coating width	Power Consumption	Power source
10-35m/min	52-300	10-14	0.6Kwh	220V
Induction oven
Conveying speed	Heater Qty.	Power	Cooling water	Air source
9-30m/min	3 x 2m/Heater	380V , 50Hz	>30L/min>400Kpa/cm2<20℃
