28-30CPM Square can making machine square tin can production line 10-18L square can making machine

Name: 28-30CPM Square can making machine square tin can production line 10-18L square can making machine
Brand: Sunnran
SKU: Sunnran
Price: 280 USD
Availability: InStock
Rating: 4.8 (200 reviews)

Price :	$280,000.00 - $700,000.00/Pieces

Place of Origin:	China	Brand Name:	Sunnran

Detail Information
Applicable Industries:	Manufacturing Plant, Food & Beverage Factory, Other	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product 2019	Warranty Of Core Components:	1 Year
Core Components:	PLC, Gearbox	Condition:	New
Automatic Grade:	Automatic	Usage:	Metal Forming Machine
Voltage:	380V 50Hz	Dimension(LWH):	12000x2300x3100
Weight:	15000 KG	Warranty:	1 Year
Key Selling Points:	Easy To Operate	Applicable Range::	Square Can
Output::	Max.45 CPM	Applicable Can Height::	150-380mm
Air Pressure::	Not Lower Than 0.6Mpa	Connection Height::	1000±10mm

Product Description

Products Description

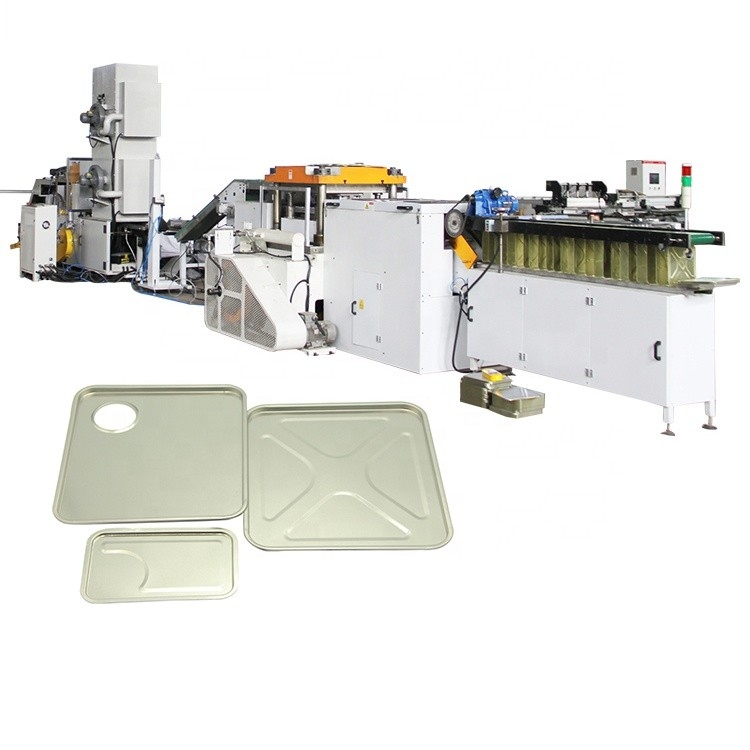

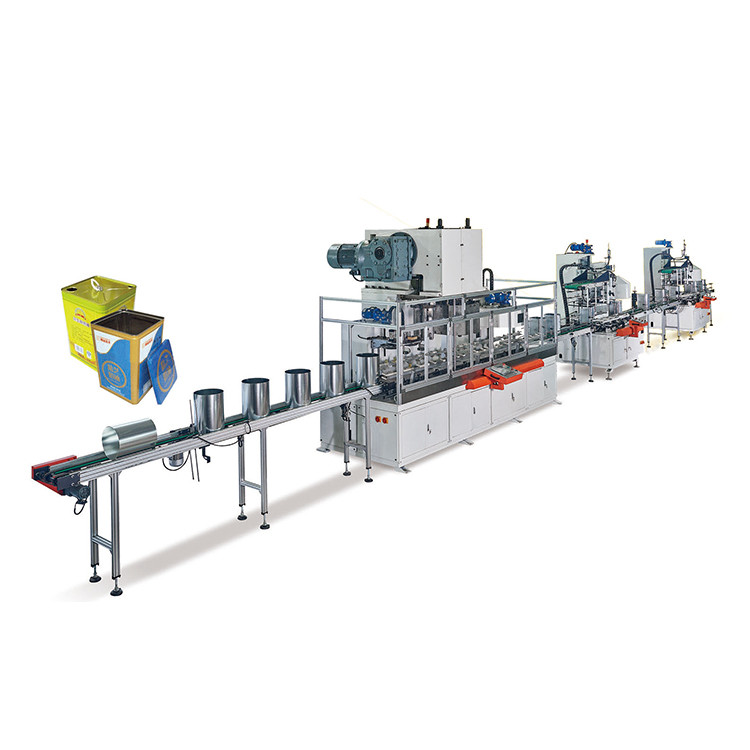

Square can making line

This line is designed for producing square can from 18L-20L. It adopts purely mechanical cam transmission, cam delivering can, cam holding can . Cans stuck protection system of this line is to make the production more secure. The internal & external grooved pulley design assures thee flanging more uniform and fast.

Applicable range	Max. speed	Thickness	Tinplate hardness
18-20L square can	42CPM	0.25-0.35mm	T2,T2.5,T3, some ofT4

Welding line

Adopts sheet upward feeding to avoid double sheet issue. Can add additional storage platform for stocking the body blanks to enable machine continuously running and enhance productivity . With new innovated frequency inverter to make perfect welding seam. Internal and external roller coating machine is quipped with automatic lacquer feeding system to enable continuous operation. After roller coating , the lever-type mechanical brush can prevent the cylinder movement hit off the can bodies. Induction oven can be designed to linear or U-shape according to client’s workshop layout.

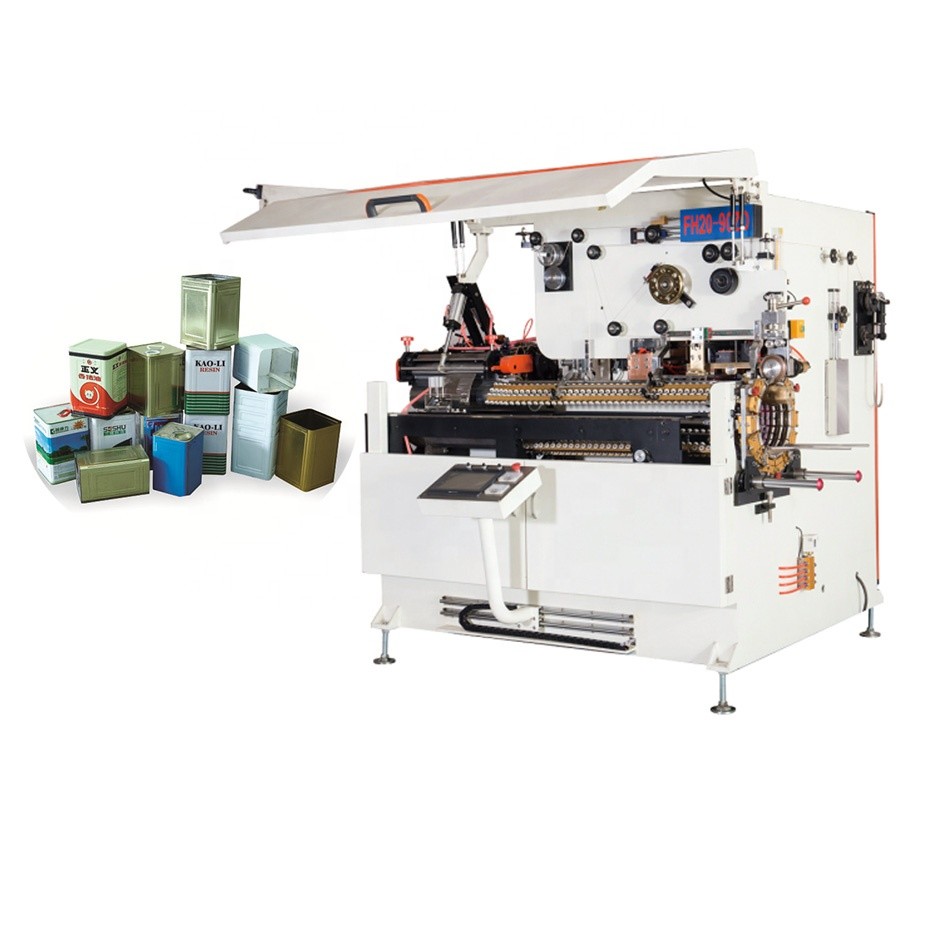

Automatic welder
Wire speed	Can diameter	Can height	Can material	Power capacity
9-24m/Min	200-260/260-290	180-450	Tinplate,Ni-plate,SS	26Kw
Internal & external coating machine
Coating speed	Can diameter	Coating width	Power Consumption	Power source
10-35m/min	52-300	10-14	0.6Kwh	220V
Induction oven
Conveying speed	Heater Qty.	Power	Cooling water	Air source
9-30m/min	3 x 2m/Heater	380V , 50Hz	>30L/min>400Kpa/cm2<20℃
